NM01MAP375060

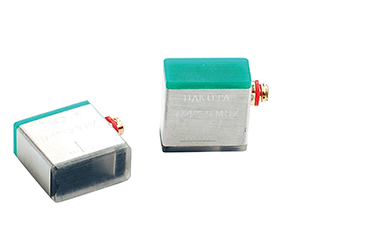

Inspect Complex Geometries with Precision: Dakota NDT Miniature 60° Angle Beam Transducer

Gain exceptional access and detailed inspection capabilities in tight, challenging locations with this ultra-compact Miniature Angle Beam Potted (MAP) transducer from Dakota NDT. Featuring a small 0.375” diameter and a focused 5 MHz frequency, this 60-degree angle beam probe is specifically designed to deliver high-resolution inspections in areas where standard transducers simply cannot reach.

The carefully engineered 60-degree refracted angle is perfectly suited for detecting and characterizing flaws with specific orientations, commonly encountered in intricate weld configurations and complex component designs. The Microdot side entry connector provides optimal flexibility for cable routing, ensuring easy integration into diverse inspection setups, even when space is severely limited.

Constructed with a durable potted design, this transducer offers robust protection against harsh environments, guaranteeing reliable and consistent performance in demanding industrial applications. Its miniature form factor doesn't compromise on sensitivity, providing the necessary power to detect small discontinuities and accurately evaluate flaws using the 60-degree angle beam technique.

Key Features:

• Ultra-Compact 0.375” Diameter: Provides unparalleled access to extremely confined areas, sharp corners, and highly complex contours.

• Precise 60° Angle Beam: Optimized for detecting and characterizing flaws with specific orientations commonly found in welds and intricate designs.

• High-Resolution 5 MHz Frequency: Delivers excellent sensitivity for detailed angled inspections in tight spaces.

• Convenient Microdot Side Entry Connector: Offers maximum flexibility in cable routing for easy integration in restricted areas.

• Durable Potted Construction: Enhances robustness and protects internal components from demanding environments.

• Ideal for Extremely Restricted Access: Perfect for inspecting welds and components with highly complex and tight geometries.

Applications:

• Highly detailed weld inspection in the most restricted access areas.

• Critical flaw detection near very tight corners and complex structural details.

• Inspection of small diameter tubes and pipes with challenging access.

• General angle beam inspections where an extremely small footprint is essential.

Reach the unreachable and ensure thorough inspections. Invest in the Dakota NDT Miniature Angle Beam Potted (MAP) 60° Transducer today.
