NM01F101

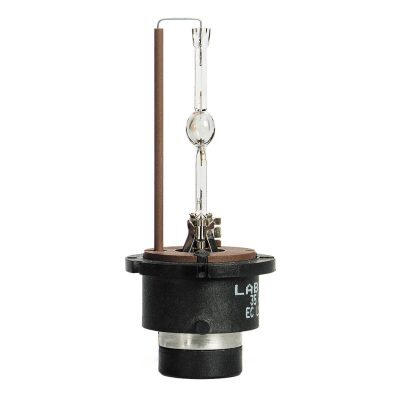

The Labino® DUV 35 is an exceptional gas discharge UV bulb manufactured in cooperation with Philips. Our high pressure arc bulb is characterized by superior output performance, intense UV light with a peak at 365 nanometres, and a long service life of over 2000 hours.
The Labino® DUV 35 is only to be used in combination with the Labino® Trigger Ballast as the electronic ballast was specifically developed to optimize the output from this light source. Labino can not guarantee maximum performance and output from this light-source if it is used with other trigger ballasts.
TECHNICAL DATA
•Labino article number: F101
•Lamp model: DUV 35
•Condition for use: Only with the Labino® Trigger Ballast
•Luminous flux: 1200 Lm
• Luminous efficacy: 35 Lm/W
• Lamp wattage: 35 W
• Lamp voltage: 85 +- 17 V
• Starting voltage: max 25 kV
•Emitted light energy: 4.5 W
• UVA: 315-400 nm
•Service life: 2000 hours
•Pressure inside lamp: In cold state 2,6 bar, In hot state 40 bar
PERSONAL SAFETY
•Always wear safety glasses when working with the Labino ® DUV-35 bulb
•Avoid direct contact with bare hands by wearing protective gloves
•Body parts exposed to direct light from the lamp for long periods of time should be covered
•The Labino® DUV-35 bulb should only be inserted in a closed reflector
•Use the Labino® DUV-35 bulb only with the Labino® electronic trigger ballast. An automotive ballast cannot be used.
