NM01T80402878

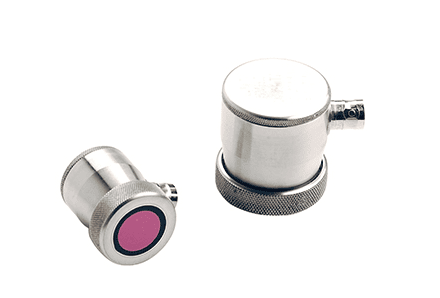

The Dakota NDT Single Contact Transducer is a versatile ultrasonic transducer featuring a 0.5-inch (1/2") diameter element with a center frequency of 5 MHz. Equipped with a convenient side-exit BNC connector and a durable High Wear (HW) face, this single element transducer is designed for a wide range of general-purpose ultrasonic testing applications requiring direct contact with the test material.

The 5 MHz frequency offers an excellent balance of sensitivity and resolution, enabling the detection of various flaw sizes at moderate depths in numerous materials. The 0.5-inch diameter provides an optimal contact area for efficient and reliable sound transmission. The side-exit BNC connector offers practical cable routing, minimizing interference during scanning and enhancing user convenience. The inclusion of a High Wear face significantly extends the transducer's lifespan, particularly when used on challenging or abrasive surfaces, ensuring consistent performance over time.

Key Selling Points:

• Versatile General-Purpose UT: The 0.5-inch diameter and 5 MHz frequency provide a balanced performance suitable for a broad range of ultrasonic testing needs.

• Enhanced Durability with High Wear Face: The robust High Wear face ensures longevity and reliable performance, even on rough or abrasive surfaces.

• Reliable and Convenient BNC Connection: The industry-standard BNC connector ensures secure and consistent signal transmission to the ultrasonic instrument.

• Practical Side-Exit Connector Design: Offers flexible cable management, preventing cable interference and improving ease of use during inspections.

• Efficient Single Contact Element: Designed for direct contact testing, providing optimal sound transmission into the material being inspected.

Benefits:

• Effective for a Wide Range of Flaw Detection: Suitable for identifying various types of discontinuities in diverse materials, ensuring comprehensive inspection capabilities.

• Increased Transducer Lifespan: The High Wear face minimizes wear and tear, especially on challenging surfaces, providing a cost-effective and long-lasting solution.

• Seamless Integration with Common UT Instruments: The BNC connector allows for easy and direct connection to most ultrasonic flaw detectors and thickness gauges.

• Improved Handling and Maneuverability: The side-exit cable design keeps the cable out of the way, enhancing ease of use during scanning procedures.

Approximate Dimensions (inches):

• Element Diameter: 0.5 inches

• Overall Length: Approximately 1.0 to 1.5 inches (This can vary slightly depending on the specific model).

• Body Diameter: Approximately 0.6 to 0.8 inches (This can vary slightly depending on the specific model).

• Connector Type: BNC (diameter approximately 0.5 inches, length approximately 1 inch including strain relief).

Applications:

This transducer is commonly utilized for:

• General-purpose flaw detection in a wide variety of materials, including metals, plastics, and composites.

• Accurate thickness gauging measurements.

• Reliable weld inspection procedures.

• Comprehensive corrosion surveys.

• Material characterization and evaluation.
