NM01CXG023E30NG

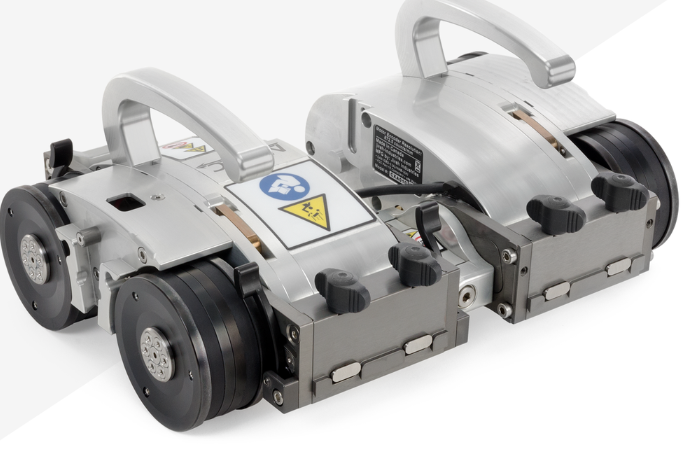

The JIREH Navic 2 System is a state-of-the-art remote access ultrasonic inspection solution engineered for comprehensive and efficient non-destructive testing (NDT) in a variety of industrial environments, particularly those with limited access or hazardous conditions. This integrated system is designed for seamless compatibility with leading ultrasonic flaw detectors from Olympus and M2M, providing a powerful platform for remote data acquisition and analysis.
The Navic 2 System is specifically designed to interface with the following high-performance ultrasonic testing instruments:
Olympus Omniscan SX, MX2, and X3: These advanced Phased Array Ultrasonic Testing (PAUT) and conventional UT flaw detectors from Olympus are renowned for their sophisticated imaging capabilities, versatile software, and robust performance.
M2M MANTIS and GEKKO: These compact yet highly capable PAUT flaw detectors from M2M (now part of Eddyfi Technologies) are known for their advanced features and suitability for complex inspection tasks.
Connectivity to these flaw detectors is facilitated through secure and reliable LEMO connectors, ensuring optimal signal transmission and robust physical connections, critical for maintaining data integrity during remote operations.
A key component of the Navic 2 System is its substantial 30-meter (100 ft) umbilical cable. This long, durable cable provides extended reach, allowing technicians to operate the ultrasonic scanner or crawler unit from a safe and convenient distance. The umbilical likely carries power to the remote unit, transmits control signals for scanner movement and parameter adjustments, and relays the raw ultrasonic data back to the connected flaw detector.
The system is configured for use in regions with North American power standards and includes a North American power cord.
For secure transportation and storage of the complete Navic 2 System, it is supplied in a case type 'G' manufactured by JIREH. This ruggedized case is specifically designed to protect the system components from physical damage and environmental factors, ensuring the longevity and reliability of the equipment. The "Type G" designation likely refers to a specific size and internal configuration optimized for the Navic 2 system.
Developed by JIREH, a recognized provider of remote inspection technologies, the Navic 2 System offers a comprehensive solution for conducting ultrasonic inspections in challenging locations, enhancing safety, accessibility, and data quality. Its compatibility with high-end flaw detectors enables advanced inspection techniques, including phased array imaging and detailed data analysis, from a remote operating station.
Key Features:
Remote Access UT Solution: Enables ultrasonic inspections in hard-to-reach or hazardous areas.
Compatibility: Designed for seamless integration with Olympus Omniscan SX/MX2/X3 and M2M MANTIS/GEKKO flaw detectors.
LEMO Connectors: Ensures reliable and secure connectivity to flaw detectors.
Long Umbilical Cable: 30 meters (100 ft) for extended operational reach.
North American Power Cord: Configured for use with North American power outlets.
Rugged Transport Case: Case type 'G' by JIREH for secure storage and transportation.
Comprehensive System: Likely includes a remote scanner/crawler, control electronics, and the umbilical.
Enhanced Safety and Accessibility: Allows inspections from a safe distance.
Applications:
Inspection of pipelines, pressure vessels, and storage tanks.
Nuclear power plant inspections.
Offshore platform inspections.
Confined space inspections.
Any application requiring remote ultrasonic data acquisition.
Technical Details:
GENERAL
Idler Encoder (Right Module): 13.78 counts/mm (349.9 counts/inch)
Motor Encoder (Left Module): 872.5 counts/mm (22162.8 counts/inch)
Crawler’s Vertical Payload: 10 kg (22 lb)1
Driving Speed: Variable 0 – 25 cm/sec (0 – 10 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) to 30 m (100 ft)2
Inspection Surface: Ferrous
Maximum Backpack payload: 1.36 kg (3 lb)3
PIPE RANGE
Circumferential: 7 cm (2.75 in) to flat pipe
Internal Circumferential: 61 cm (24 in) to flat
Longitudinal: 30.5 cm (12 in) to flat
RADIAL CLEARANCE
Pipes under 20 cm (8 in): 7 cm (2.75 in)4
Pipes over 20 cm (8 in): 8.15 cm (3.2 in)4
REGULATIONS
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.5
FCC: Compliance with Part 15 of FCC rules.5
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.5
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.5
SIZE & WEIGHT
Base Crawler Height (including handles): 12.5 cm (4.9 in)
Base Crawler Height (handles removed): 8.1 cm (3.2 in)
Base Crawler Width (Dual Pod): 28.2 cm (11.1 in)
Base Crawler Length: 30.8 cm (12.1 in)6
Base Crawler Width (Single Pod): 16.1 cm (6.3 in)
Base Crawler Weight: 7.7 kg (17 lb)7
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)8
