NM01XXG3005

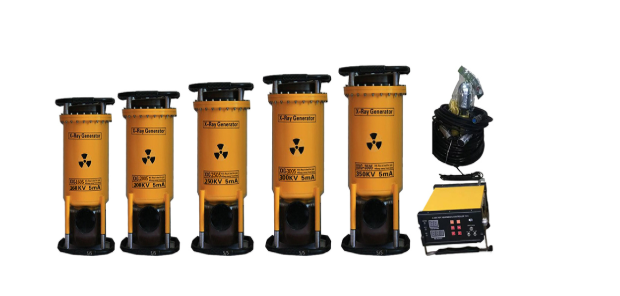

The XXG-3005 NDT Flaw Detector by Dandong Xinli is a portable and advanced X-ray inspection system designed for non-destructive testing (NDT) applications. This system utilizes a ceramic X-ray tube to detect internal discontinuities, defects, or faults in materials and welds, making it ideal for a wide range of industrial inspections. The detector is commonly used in industries such as shipbuilding, aviation, manufacturing, petroleum, and more, providing critical insights into the structural integrity of various materials without causing damage.

This flaw detector allows professionals to evaluate the quality of components or structures based on radiographic images captured during inspection. Its compact and portable design, coupled with a 50% duty cycle, makes it suitable for on-site use in various field conditions. It is engineered for high-performance imaging and reliability, making it a vital tool in industries that require quality assurance and safety compliance.

Key Features & Benefits:

• Radiation Coverage:

  • The device offers a radiation coverage of 40° ± 5°, which allows for versatile scanning of large areas or complex geometries, providing a wide inspection range in one scan.

• High Penetration Power:

  • The XXG-3005 is capable of penetrating up to 50 mm of Q235 steel at 300 kV, making it effective for testing various materials with varying thicknesses.

• Adjustable Tube Voltage:

  • The tube voltage is adjustable between 170 kV and 300 kV, offering flexibility to optimize settings based on the material being tested.

• Tube Current:

  • The system uses a fixed tube current of 5 mA, which ensures consistent performance during inspections.

• Power Supply:

  • Operates on AC 198-242 V at 50-60 Hz, ensuring compatibility with various power sources.

• Duty Cycle:

  • The detector works with a 50% duty cycle, allowing for 5 minutes of continuous operation followed by 5 minutes of rest, ensuring durability during prolonged use.

• Compact Design:

  • The dimensions are 340 mm (L) x 340 mm (W) x 660 mm (H), and it weighs approximately 37 kg (81.57 lbs), making it portable and easy to handle during field operations.

• Durable Construction:

  • The XXG-3005 is built to withstand the rigors of industrial environments, providing reliable and long-lasting performance.

Applications:

The XXG-3005 NDT Flaw Detector is ideal for industries and applications that require non-destructive testing of materials and welds. Its uses include:

• Shipbuilding: Inspecting welds, joints, and structural components for quality and safety.

• Aerospace: Ensuring the integrity of aircraft materials, detecting potential defects in critical components.

• Manufacturing: Quality control in the production of metal parts and machinery.

• Petroleum & Chemicals: Inspecting pipelines, pressure vessels, and other equipment for corrosion or structural issues.

• Railroad: Detecting faults in rail tracks and welded joints.

• Power Plants: Ensuring the structural safety of boilers, pipes, and other critical infrastructure.

Why Choose the XXG-3005 NDT Flaw Detector?

• Portable and Compact: Its lightweight design allows for easy transportation and setup, ideal for field inspections.

• Flexible and Adjustable: With adjustable voltage and a wide radiation coverage, the system can be tailored to suit various materials and inspection needs.

• Efficient and Reliable: The 50% duty cycle ensures the device can handle extended operations without overheating, making it reliable for on-site inspections.

• High Penetration: Capable of inspecting thick materials up to 50 mm, it is a versatile tool for a variety of industries.

• Durability: Built for industrial environments, the XXG-3005 ensures long-term performance even under demanding conditions.
