NM01CEG04424U0202

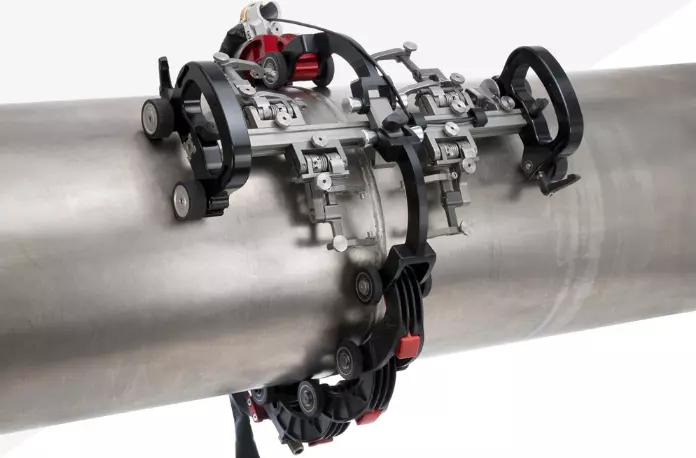

The JIREH ROTIX - 4 Probe Weld Frame Scanner is a robust and adaptable ultrasonic inspection tool specifically engineered for the comprehensive examination of welds on cylindrical components such as pipes and tubes. Designed for versatility and efficiency, this scanner can accommodate up to four ultrasonic probes simultaneously, enabling thorough weld coverage in a single rotational pass. Its adjustable frame allows for inspection of components with outer diameters ranging from 7.6 cm to 61 cm (3 inches to 24 inches), making it suitable for a wide spectrum of industrial applications.
A key feature of the ROTIX scanner is its designated compatibility with the SONATEST VEO series of advanced ultrasonic flaw detectors. This integration leverages the powerful data acquisition and processing capabilities of the VEO, facilitating sophisticated inspection techniques such as Phased Array Ultrasonic Testing (PAUT) and conventional UT for detailed weld characterization.
Precise positional encoding is crucial for accurate weld mapping and defect sizing. The ROTIX scanner incorporates a LEMO encoder connector, ensuring a reliable and secure interface for transmitting high-resolution encoder signals to the connected SONATEST VEO flaw detector. This allows for precise tracking of the scanner's circumferential movement around the component, correlating the ultrasonic data with its exact location on the weld.
The scanner's frame and probe holders are designed for adjustability to accommodate various pipe diameters and weld configurations. Primary and secondary pivot buttons, each measuring 5mm (0.197 inches), provide intuitive mechanisms for articulating the scanner arms and optimizing probe placement. These pivot points allow for fine-tuning the skew angle, index offset, and overall probe orientation relative to the weld bead, ensuring optimal acoustic coupling and inspection coverage. The dual pivot system likely offers enhanced flexibility in probe positioning compared to single-pivot designs.
Manufactured by JIREH, a recognized leader in the development of remote inspection equipment and non-destructive testing solutions, the ROTIX - 4 Probe Weld Frame Scanner is built for durability and reliable performance in demanding industrial environments. Its ability to deploy multiple probes simultaneously significantly increases inspection speed and efficiency, while the compatibility with advanced flaw detectors ensures high-quality data acquisition and analysis for critical weld assessments.
Key Features:
Four-Probe Capacity: Accommodates up to four ultrasonic probes for comprehensive weld inspection in a single pass.
Wide Diameter Range: Inspects cylindrical components from 7.6 cm (3 in) to 61 cm (24 in) in diameter.
SONATEST VEO Compatibility: Designed for seamless integration with SONATEST VEO series flaw detectors.
LEMO Encoder Connector: Ensures reliable and precise positional encoding for accurate data mapping.
Dual Pivot Buttons (5mm): Primary and secondary pivot points for versatile and optimized probe placement.
Adjustable Frame: Adapts to various pipe diameters and weld configurations.
Robust Construction: Built for durability in industrial inspection environments.
Increases Inspection Efficiency: Multi-probe capability reduces inspection time.
Facilitates Advanced UT Techniques: Compatible with PAUT and conventional UT methods.
Manufactured by JIREH: A trusted provider of NDT inspection solutions.
Applications:
Ultrasonic inspection of circumferential and longitudinal welds on pipes and tubes.
Weld quality assessment in industries such as oil and gas, petrochemical, and manufacturing.
Detection and sizing of weld defects (e.g., cracks, porosity, inclusions).
Automated and semi-automated ultrasonic weld inspection.
Corrosion mapping on welds (depending on probe configuration).
