NM01P2S

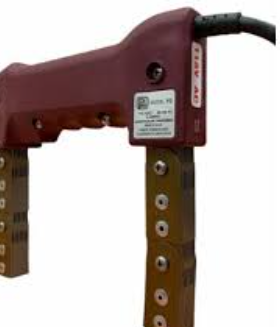

MAGNETIC YOKE AC P-2 Contour Probe, 230 V, PARKER
The PARKER P-2 Contour Probe is a handheld, AC (Alternating Current) magnetic particle inspection (MPI) yoke designed for detecting surface and near-surface discontinuities in ferromagnetic materials. The "Contour Probe" designation indicates its articulating legs, which allow it to conform to various shapes and sizes of test pieces, making it a versatile tool for inspections across numerous industries.
This rugged and reliable AC magnetic yoke operates on 230 Volts. It is a widely used tool in non-destructive testing (NDT) for quickly and effectively locating surface and slightly subsurface flaws such as cracks, laps, and seams in ferromagnetic materials like steel and iron.
The yoke works by inducing a strong alternating current magnetic field in the area between its poles when placed on the ferromagnetic material. If a discontinuity is present, it disrupts the magnetic field, causing magnetic flux leakage. When ferromagnetic particles (either dry or in a wet suspension) are applied to the surface, they are attracted to these leakage fields, visually indicating the location, size, and shape of the flaw.
The key feature of the P-2 Contour Probe is its articulating legs. These adjustable legs allow the yoke to make good magnetic contact with components of various shapes, including flat, curved, and irregular surfaces, making it highly adaptable for inspections on a wide range of equipment and structures.
Operating on 230 V AC power, the alternating current induces a magnetic field that provides good mobility of the magnetic particles, enhancing the detection of surface cracks. The AC field also offers some limited capability for detecting near-surface flaws.
PARKER Research Corporation is a well-known and respected manufacturer of magnetic particle inspection equipment, ensuring the P-2 Contour Probe is a durable and dependable tool for NDT professionals globally.
Key Features:
AC Magnetic Field: Provides excellent surface flaw detection and good particle mobility.
Articulating Legs: Conform to various part shapes and sizes for optimal magnetic contact.
Rugged and Durable Construction: Built to withstand demanding industrial environments.
Lightweight and Portable: Easy to handle and use in various inspection locations.
Simple Operation: User-friendly design for quick and efficient inspections.
230 V Operation: Compatible with standard 230 Volt AC power supplies.
Reliable Performance: Manufactured by PARKER, a trusted name in MPI equipment.
Applications:
Inspection of welds on pipelines, storage tanks, and structural steel.
Detection of fatigue cracks in machinery and equipment used in various industries.
Quality control of ferrous metal components during manufacturing.
In-service inspection of transportation equipment.
Examination of castings and forgings for surface discontinuities.
Maintenance inspections in the oil and gas, petrochemical, and construction sectors.
