NM01AB2625625AWS

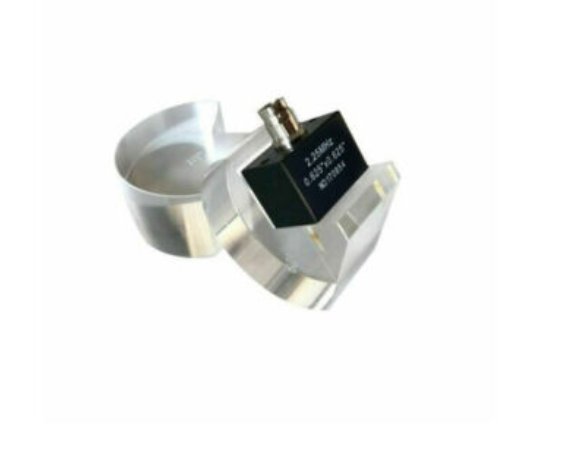

This CNDT Ultrasonic Transducer is specifically designed to meet or exceed the specifications set forth by the American Welding Society (AWS) standards for weld inspection. Featuring a center frequency of 2.25 MHz and a square element size of .625" x .625", this transducer offers an excellent balance of penetration and resolution for critical weld examinations.
The 2.25 MHz frequency is a standard choice for weld inspection, providing sufficient penetration to examine typical weld thicknesses while maintaining good sensitivity for detecting common weld discontinuities such as cracks, porosity, and lack of fusion. The .625" x .625" element size provides a practical contact area for stable coupling and a well-defined sound beam, contributing to accurate flaw detection and characterization.
Equipped with a standard BNC connector, this transducer ensures easy and secure connection to a wide variety of ultrasonic flaw detectors commonly used in weld testing. Its robust construction is designed to withstand the demanding conditions of field and shop weld inspections, providing reliable performance and longevity.
Key Selling Points:
Meets AWS Standards: Specifically designed for weld inspection applications requiring adherence to AWS specifications.
Optimal 2.25 MHz Frequency: Provides an excellent balance of penetration and resolution for weld examination.
Practical .625" x .625" Element Size: Offers good acoustic coupling and a well-defined beam.
Standard BNC Connector: Ensures compatibility with a wide range of ultrasonic flaw detectors.
Durable Construction: Built to withstand the rigors of weld inspection environments.
Reliable CNDT Quality: Ensures consistent and dependable performance.
Benefits:
Ensures Compliance with AWS Standards: Facilitates inspections performed to American Welding Society requirements.
Effective Weld Flaw Detection: Capable of identifying critical weld discontinuities.
Reliable and Consistent Results: Designed for dependable performance in weld testing.
Easy to Use and Connect: Standard BNC connector ensures simple integration with existing equipment.
Durable and Long-Lasting: Built for extended use in weld inspection settings.
Applications:
This 2.25 MHz, .625" x .625" AWS transducer is commonly used for:
General Weld Inspection: Examining welds in various materials and configurations.
Detection of Weld Defects: Identifying cracks, porosity, slag inclusions, and lack of fusion.
Quality Control in Welding Fabrication: Ensuring the integrity of welded structures.
Inspection of Pipelines, Pressure Vessels, and Structural Steel: Applications requiring weld examination to AWS standards.
The CNDT AWS Transducer, 2.25 MHz, .625" x .625", BNC Connector is an essential tool for NDT professionals specializing in weld inspection, providing the performance and reliability needed to meet stringent AWS requirements and ensure the quality of welded components.
