NM01ECHO9DLW

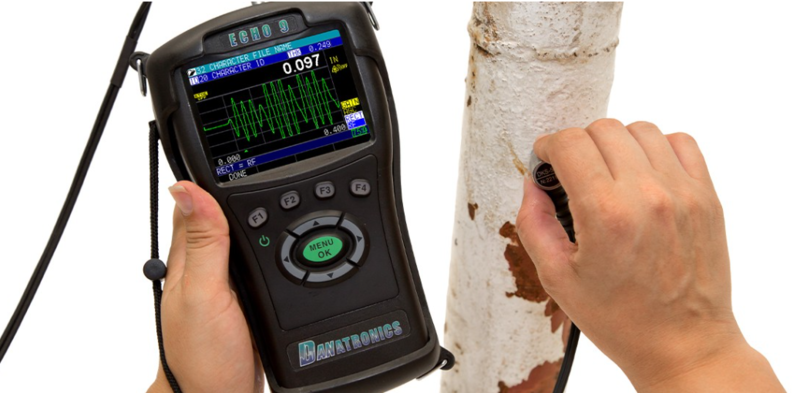

The Danatronics ECHO-9DLW is a top-tier, handheld ultrasonic thickness gauge engineered for professionals who demand uncompromising accuracy and comprehensive data management in challenging industrial environments. This robust instrument excels in both critical corrosion assessment and high-precision thickness measurements across a vast array of materials.
The ECHO-9DLW offers a powerful suite of features, including essential Echo-to-Echo mode, which effectively measures the true metal thickness by ignoring coatings, ensuring reliable readings on painted or layered materials. The integrated B-Scan function provides a valuable cross-sectional view of the material's profile, aiding in the visualization of corrosion and material variations. For in-depth signal analysis and measurement verification, the live Waveform (A-Scan) display offers real-time insight into the ultrasonic signal characteristics.
With its virtually "Unlimited" data logging capability, facilitated by support for up to a 32GB micro SD card, the ECHO-9DLW allows for the storage of an immense volume of thickness readings, each tagged with location IDs for detailed corrosion mapping and profile assessment. The included Data XL Interface Program simplifies the export of this data to Microsoft Excel™, streamlining reporting and further analysis.
A standout feature is the instrument's ability to perform Simultaneous Coating and Substrate Measurement, displaying both thicknesses concurrently for enhanced understanding of layered systems. Furthermore, Independent Velocity Calibration for both the coating and substrate ensures unparalleled accuracy when measuring multi-layered materials with differing acoustic properties.
The ECHO-9DLW boasts a vibrant 3.5" sunlight-readable color display, providing exceptional clarity in any lighting condition. Its intuitive interface and adjustable gain settings (up to 94 dB on waveform models) allow for optimized performance across a wide range of materials and inspection scenarios. The gauge supports various measurement modes and includes software for Temperature Correction to account for sound velocity variations.
Built for the realities of industrial use, the ECHO-9DLW features a rugged, IP67-rated enclosure, offering superior protection against dust and water ingress. Its long-lasting rechargeable Li-Ion battery ensures extended operation in the field, with an optional alkaline battery tray available for added flexibility.
Key Selling Points:
Advanced Measurement Modes: Includes Echo-to-Echo, B-Scan, and Live A-Scan for comprehensive analysis.
"Unlimited" Data Logging: Store virtually limitless readings with location IDs for detailed reporting.
Simultaneous Coating & Substrate Measurement: Provides complete thickness information for layered materials.
Independent Velocity Calibration: Ensures exceptional accuracy in multi-layered applications.
Bright Sunlight-Readable Color Display: Offers outstanding visibility in any environment.
Rugged IP67-Rated Enclosure: Built for durability and reliability in demanding conditions.
Benefits:
Unparalleled Measurement Accuracy: Advanced features ensure precise and reliable thickness readings, even with coatings.
Comprehensive Data Management: Efficiently collect, store, and report extensive inspection data.
Enhanced Inspection Efficiency: User-friendly interface and versatile features streamline the inspection process.
Exceptional Durability and Reliability: Built to withstand the rigors of industrial use.
Versatile Application Range: Suitable for a wide array of materials and inspection requirements.
Applications:
The ECHO-9DLW is the ideal tool for critical thickness measurement and corrosion monitoring in industries such as:
Oil and Gas (pipelines, pressure vessels)
Power Generation (boiler tubes)
Aerospace
Marine (ship hulls)
Chemical Processing
General Manufacturing
The Danatronics ECHO-9DLW sets a new standard for handheld ultrasonic thickness gauges, offering unmatched accuracy, comprehensive data management, and rugged reliability for the most demanding inspection tasks. Invest in the ECHO-9DLW for uncompromising performance and lasting value.
