NM01EDDYCL

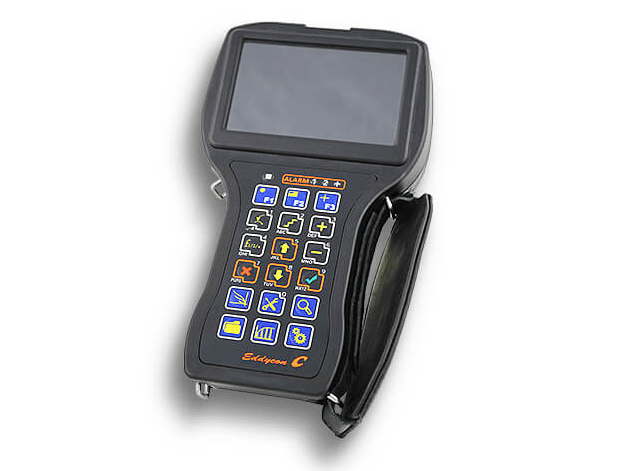

The Ultracom Eddycon C Eddy Current Flow Detector is a premium, portable device in the eddy current testing field, designed for high-precision flaw detection in a variety of materials. This advanced device features a 4.3" TFT color display, intuitive navigation with single-key menu access, and versatile functionality for detecting surface and sub-surface flaws, inspecting welds, and measuring conductivity and coating thickness. Built to meet ISO 15548 standards, the Eddycon C ensures top-quality performance in industries like aerospace, energy, and manufacturing.

Key Features:

• High Precision Detection: Detects surface and sub-surface cracks, evaluates conductivity, and checks coating thickness.
• Industry Compliance: Meets rigorous standards such as AIRBUS and BOEING Nondestructive Testing Manuals.
• User-Friendly Operation: Easy-to-navigate interface, responsive buttons, and customizable settings.
• Data Storage & Connectivity: Stores up to 1,000 settings and test results with options to transfer data via USB and Ethernet.
• Portable Design: Lightweight at only 2 lbs, with ergonomic side strap for single-handed use.

Specifications:

• Display: 4.3" color TFT, 800x480 resolution
• Memory: Saves over 1,000 settings and test results
• Battery Life: 7-hour operation with quick-release Li-Ion battery
• Weight: 2 lbs (0.9 kg)
• Compliance: ISO 15548
• Compatibility: Works with temperature sensors and ‘Balance’ remote button (optional)

Applications: Ideal for aerospace, manufacturing, oil and gas, chemical, and power industries, the Eddycon C is essential for:

• Surface and sub-surface crack detection in metal parts
• Testing welds for flaws and ensuring compliance with quality standards
• Measuring non-magnetic material conductivity and paint thickness
• Performing real-time data analysis for immediate quality assurance

Price: Contact for quote
Category: Nondestructive Testing Equipment

Brochure:
