NM01MCCAUT004D

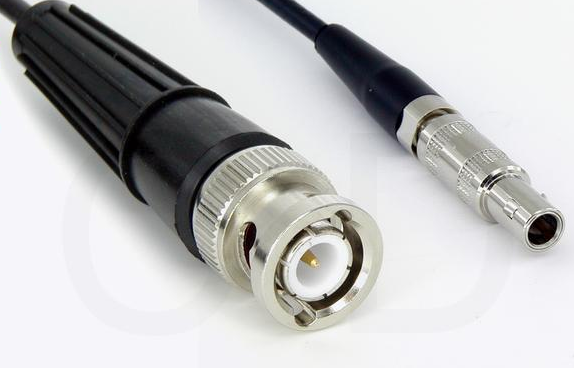

The Dual Element UT Cable with LEMO 00 to BNC Connectors is a specialized interconnect designed for use with dual element (twin crystal) ultrasonic transducers. 1 This cable features two LEMO 00 connectors at the transducer end and two BNC connectors at the instrument end, ensuring the correct and isolated signal pathways required for proper dual element probe operation.

Constructed with two separate runs of flexible RG174 coaxial cable within a single protective jacket, this 2-meter (approximately 6.56 feet) cable assembly provides the necessary isolation for optimal transmit and receive signal integrity. The secure locking mechanism of the LEMO 00 connectors ensures a reliable connection to the transducer, while the widely compatible BNC connectors offer a convenient interface to your ultrasonic testing instrument.

This dual cable is essential for applications utilizing dual element transducers, such as precise thickness gauging, near-surface flaw detection, and other techniques that benefit from the focused beam and improved signal-to-noise ratio offered by twin crystal probes.

Key Selling Points:

• Dual LEMO 00 to Dual BNC Configuration: Specifically designed for dual element ultrasonic transducers and compatible instruments.

• Isolated Dual RG174 Cable Construction: Ensures optimal signal separation for enhanced performance.

• Practical 2-Meter Length: Provides ample reach for various testing scenarios.

• Reliable Signal Transmission for Dual Element Probes: Ensures accurate data transfer for thickness and near-surface flaw detection.

• Durable and Robust Design: Built to withstand typical use in non-destructive testing environments.

• Secure and Stable Connections: LEMO 00 and BNC connectors provide a dependable interface for both channels.

Benefits:

• Guarantees Correct Connectivity for Dual Element Probes: Ensures proper signal routing for effective operation.

• Enables Accurate Measurements with Dual Element Transducers: Facilitates reliable thickness gauging and near-surface flaw detection.

• Offers Versatile Reach During Inspections: The 2-meter length accommodates various testing setups.

• Maintains Signal Clarity for Optimal Performance: Isolated cable design minimizes interference.

• Provides Long-Term Durability: Robust construction withstands the demands of NDT applications.

Applications:

This dual UT cable is commonly used to connect:

• Dual element thickness gauges with two LEMO 00 connectors to instruments with two BNC connectors.

• Dual element flaw detectors with two LEMO 00 connectors to instruments with two BNC connectors, particularly for near-surface inspections.

• Specialized dual element ultrasonic transducers with LEMO 00 connectors to compatible testing equipment with BNC connections.

The Dual Element UT Cable with LEMO 00 to BNC Connectors is a critical accessory for effectively utilizing dual element ultrasonic transducers, providing a reliable and properly configured connection for accurate and efficient non-destructive testing.
