ZX-5 Ultrasonic Thickness Gauge, Dakota NDT SKU: Z-303-0001
Choose Quantity

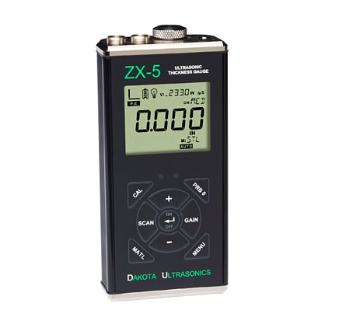

Dakota NDT — ZX-5 Ultrasonic Thickness Gauge
Pulse-Echo Ultrasonic Thickness Gauge with USB-C Connectivity, IP65 Protection & 5-Year Limited Warranty SKU: Z-303-0001Overview
The Dakota NDT ZX-5 Ultrasonic Thickness Gauge is a professional inspection instrument designed for reliable wall thickness measurement, corrosion monitoring, and material evaluation in industrial NDT applications. Built for field and shop use, this gauge supports pulse-echo ultrasonic measurement workflows across pipes, tanks, vessels, plates, and structural components.
The ZX-5 platform is designed to deliver dependable ultrasonic performance using 120 MHz FPGA timing and a 150 volt square wave pulser. It supports dual element transducers with 1–10 MHz options, adjustable gain control, and selectable manual or auto zero for practical setup across different inspection conditions.
With USB-C connectivity, CDC-compatible serial over USB communication, a low-temperature custom LCD display, IP65 protection rating, and a 5-year limited warranty, the ZX-5 provides a durable and efficient solution for technicians who need fast, repeatable ultrasonic thickness readings in demanding field environments.
What's Included
| Item | Details |
|---|---|
| Thickness Gauge | Dakota NDT ZX-5 ultrasonic thickness gauge |
| Measurement Mode | Pulse-echo measurement |
| Transducer Support | Dual element transducers |
| Frequency Options | 1–10 MHz transducer options |
| Connectivity | USB-C, CDC-compatible serial over USB |
| Documentation | User manual / operating instructions, if included |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 12.0 in |
| Width | 10.0 in |
| Height | 5.0 in |
| Dimensions (L × W × H) | 12.0 × 10.0 × 5.0 in |
| Weight | 4.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic thickness gauge |
| Model | ZX-5 |
| Measurement Mode | Pulse-echo |
| Timing System | 120 MHz FPGA timing |
| Pulser | 150 volt square wave pulser |
| Gain Control | Adjustable |
| Zero Function | Selectable manual or auto zero |
| Transducer Type | Dual element transducers |
| Transducer Frequency Options | 1–10 MHz |
| Display | Low-temperature custom LCD |
| Connectivity | USB-C |
| USB Communication | CDC-compatible serial over USB |
| Optional Communication | Serial RS232 or Bluetooth module, if configured |
| Environmental Rating | IP65 |
| Warranty | 5-year limited warranty |
| Application | Thickness measurement and corrosion monitoring |
| Manufacturer | Dakota NDT |
| SKU | Z-303-0001 |
Performance Features
Pulse-Echo Measurement
Supports reliable ultrasonic thickness measurement for routine NDT inspection and corrosion monitoring workflows.
120 MHz FPGA Timing
Provides precise timing support for accurate and repeatable wall thickness readings.
150 Volt Square Wave Pulser
Delivers strong ultrasonic signal performance for dependable field measurement applications.
Adjustable Gain Control
Allows users to adapt signal response to different materials, probe setups, and inspection conditions.
User-Friendly Design
USB-C connectivity supports modern data transfer workflows
Selectable manual or auto zero supports flexible setup
Low-temperature LCD display supports cold environment use
Dual element probe support provides practical inspection flexibility
Designed for fast ultrasonic wall thickness verification
Built for Industrial Environments
IP65 protection rating for field-ready durability
Low-temperature display supports demanding inspection conditions
Suitable for maintenance, fabrication, and QA/QC environments
Built for corrosion monitoring and wall thickness verification
Supported by a 5-year limited warranty
Compatibility
Compatible with:
Dual element ultrasonic transducers
1–10 MHz probe options
Pulse-echo thickness measurement workflows
USB-C communication workflows
Optional RS232 or Bluetooth communication modules
Corrosion monitoring and wall thickness inspection programs
Ideal Applications
Ultrasonic thickness measurement
Corrosion monitoring
Wall thickness verification
Pipe and tank inspection
Pressure vessel inspection
Structural component evaluation
Maintenance inspection programs
Field and shop NDT workflows
About Dakota NDT
Dakota NDT is a trusted manufacturer of ultrasonic testing equipment, thickness gauges, flaw detectors, probes, cables, and inspection accessories. Their products are widely used in professional NDT environments where accuracy, durability, and consistent inspection performance are essential.
