NM01MCCAUT006

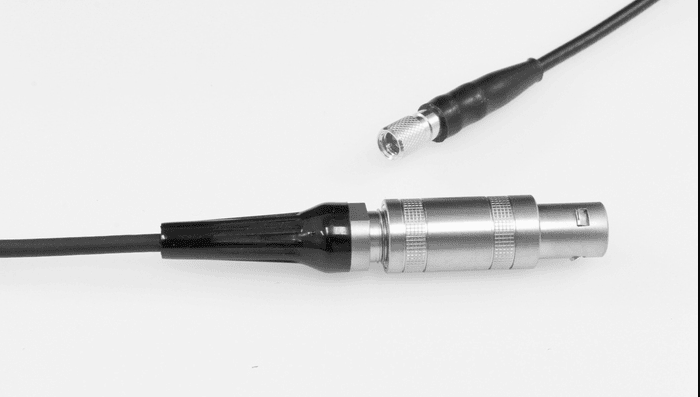

This is an ultrasonic testing (UT) cable designed to connect an ultrasonic transducer with a Microdot connector to an ultrasonic instrument equipped with a Lemo 1 series connector. The cable utilizes RG174 coaxial cable, has a length of 2 meters, and is manufactured by MC.

Key Features:

• Connector Types: Features a Lemo 1 series connector on one end, commonly used for connecting to various ultrasonic flaw detectors and instruments, and a Microdot connector on the other end, typically used for connecting to a wide range of ultrasonic transducers, especially smaller or higher-frequency probes.

• RG174 Coaxial Cable: Employs RG174 cable, a flexible and lightweight coaxial cable suitable for transmitting high-frequency ultrasonic signals with minimal loss over short to medium distances.

• 2 Meter Length: Provides a working length of 2 meters (approximately 6.56 feet), offering a practical distance between the ultrasonic instrument and the transducer during inspections.

• MC Manufacturing: Manufactured by MC, indicating a specific supplier and potentially specific quality standards for the cable assembly.

• Single Coaxial Configuration: This is a single coaxial cable designed for standard pulse-echo ultrasonic testing with single-element transducers.

Applications:

• Ultrasonic Flaw Detection: Used to connect single-element transducers to ultrasonic flaw detectors for detecting internal discontinuities in various materials.

• Ultrasonic Thickness Gauging: Used to connect single-element transducers to ultrasonic thickness gauges for measuring material thickness.

• General Ultrasonic Testing: Suitable for a wide range of ultrasonic testing applications where a Lemo 1 connector is required on the instrument side and a Microdot connector is needed for the transducer.

Importance:

• Facilitates Transducer Connection: Enables the connection of transducers with Microdot connectors to instruments with Lemo 1 series connectors.

• Reliable Signal Transmission: Ensures efficient and accurate transmission of ultrasonic pulses between the instrument and the transducer.

• Flexibility and Ease of Use: The RG174 cable provides good flexibility, making it easy to maneuver during inspections.

• Common Connector Interface: Lemo and Microdot connectors are widely used in the NDT industry, ensuring broad compatibility.

• Appropriate Length: The 2-meter length offers a balance of reach and signal integrity for many testing scenarios.
