NM01NDT1012MA

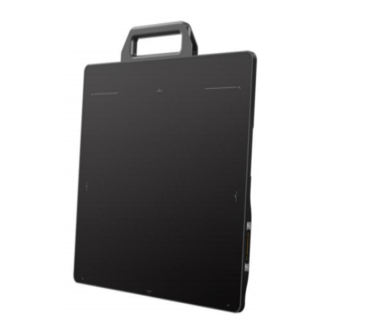

The NDT1012MA represents a cutting-edge advancement in digital radiography, serving as a high-performance, wireless flat-panel X-ray detector meticulously engineered for a broad spectrum of diagnostic and non-destructive testing applications. At its core, this detector leverages the well-established and reliable amorphous silicon (a-Si) technology, a cornerstone of modern digital imaging known for its stability, sensitivity, and cost-effectiveness.
Encased in a robust and thoughtfully designed housing measuring 298mm × 340mm × 17mm, the NDT1012MA strikes an optimal balance between a substantial imaging area and convenient portability. Within these dimensions lies an effective imaging area of 300mm × 250mm, providing users with a generous field of view suitable for capturing comprehensive anatomical or material information in a single exposure. This imaging area is meticulously segmented into a high-resolution pixel matrix of 2400 × 2000 individual pixels.
The remarkably fine pixel size of 125µm is a critical specification that directly translates to the exceptional spatial resolution achievable with the NDT1012MA. This small pixel pitch enables the detector to capture and render minute details with outstanding clarity, a crucial factor in accurate diagnosis in medical imaging and the precise identification of flaws in industrial inspections. The resulting 4.8 million pixels contribute to images rich in information, allowing for enhanced visualization of subtle structures and anomalies.
Recognizing the diverse operational demands of modern imaging environments, the NDT1012MA offers unparalleled flexibility in data transmission through its support for both wired and wireless connectivity. The wired option provides a secure and high-bandwidth connection for stationary setups, ensuring reliable data transfer in demanding clinical or laboratory settings. Complementing this, the integrated wireless data transmission capability significantly enhances the detector's versatility, making it ideally suited for portable X-ray systems, field applications, and environments where cable management is challenging. This wireless functionality streamlines workflows, improves patient or object positioning, and ultimately contributes to a more efficient imaging process.
The choice of amorphous silicon technology ensures not only excellent image quality but also robust performance and longevity. a-Si detectors are known for their good sensitivity to X-ray radiation and their ability to maintain consistent performance over time. While the specifics of the scintillator material and ADC depth are not explicitly stated, the overall specifications suggest a detector designed for optimal dose efficiency and a wide dynamic range, allowing for the capture of subtle variations in X-ray attenuation across the subject.
In conclusion, the NDT1012MA wireless digital flat-panel detector represents a sophisticated and versatile imaging solution. Its combination of high spatial resolution achieved through a fine pixel pitch and large pixel matrix, a practical and portable form factor, and the flexibility of both wired and wireless data transmission, underpinned by the reliable amorphous silicon technology, positions it as a valuable asset across a multitude of applications in medical radiography, veterinary imaging, and non-destructive testing. It is engineered to deliver high-quality digital images efficiently, contributing to improved diagnostic accuracy and enhanced inspection capabilities.
