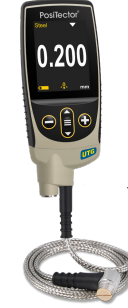

DeFelsko PosiTector UTG CX1 Standard Ultrasonic Thickness Gage with Xtreme Corrosion Probe
SKU: UTG-CX1
A rugged ultrasonic wall thickness gage with a 5 MHz dual-element Xtreme probe on a braided stainless steel cable, made for measuring corrosion and erosion on tanks, pipes and structures in the most demanding environments.
| 1–125 mm0.040" to 5.000" range | ±0.001"Accuracy (±0.03 mm) | IP65Weatherproof enclosure | 2 yearsBody and probe warranty |
The DeFelsko PosiTector UTG CX1 measures the wall thickness of steel, plastic and other materials using ultrasonic technology. It's ideal for measuring the effects of corrosion or erosion on tanks, pipes and any structure where access is limited to one side. Its 5 MHz dual-element Xtreme probe uses a focused V-path with automatic V-path compensation to accurately measure metals with heavy corrosion or back wall pitting.
The CX probe adds a braided stainless steel cable jacket and heavy-duty strain reliefs for protection in demanding environments. It connects to the PosiTector Standard gage body, which has a large 2.8" color touchscreen and an IP65 weatherproof enclosure, and accepts any PosiTector probe.
See It in Action
Key Features
 | Built for demanding environmentsThe Xtreme probe's braided stainless steel cable and reinforced strain reliefs stand up to abrasion, impacts and rough handling. The gage body is weatherproof, dustproof and water-resistant to IP65, with a durable rubberized grip and a shock-absorbing protective holster. |
Fast, accurate readings on corroded steelPrecision ultrasonic transducers give fast readings to ±0.001" (±0.03 mm), with built-in temperature compensation. SmartCouple mode prevents accidental decoupling on scaled or pitted surfaces, and Min Scan mode records minimum and maximum thickness as you scan, so thin spots are easy to find. |  |
 | Measure almost any materialSelect from pre-programmed velocities for common materials, enter your own velocity, or adjust to a known thickness at one or two points. The gage covers sound velocities from 1,250 to 10,000 m/s, so it measures metals, plastics and other materials. |
Built for the Field
Large color touchscreen
The 2.8" impact-resistant color touchscreen, redesigned keypad and on-gage help make navigation quick. The display rotates automatically with Flip Lock, and the menus are available in 15 languages.
Statistics and data storage
Statistics Mode continuously updates average, standard deviation, min/max and number of readings. The Standard body stores 1,000 date- and time-stamped readings per probe plus 100 screen captures.
Simple reporting with PosiSoft
Connect over USB to access readings like a flash drive, with no software needed, or use the included PosiSoft software to create custom, professional PDF reports.
Long battery life
Over 20 hours of continuous operation on 3 AAA batteries, with an instant-on feature and continuous power available over USB.
One body, many instruments
The PosiTector body accepts all PosiTector probes, so it can become a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, hardness tester or gloss meter.
Certified accuracy
Every gage ships with a Long-Form Certificate of Calibration traceable to NIST or PTB, documenting actual readings, and conforms to ASTM E797.
Specifications
| General | |
| Manufacturer | DeFelsko |
|---|---|
| Model | PosiTector UTG CX1 (Standard body with UTG CX probe) |
| SKU | UTG-CX1 |
| Instrument type | Ultrasonic wall thickness gage |
| Warranty | 2 years on gage body and probe |
| Shipping dimensions (estimated) | 305 × 254 × 127 mm (12.0 × 10.0 × 5.0 in) |
| Shipping weight (estimated) | 1.4 kg (3.0 lb) |
| UTG CX Xtreme Probe | |
| Probe type | 5 MHz dual element, single echo, with durable PEEK probe tip |
| Cable | 1 m (3 ft), braided stainless steel jacket with heavy-duty strain reliefs |
| Measuring range | 0.040" to 5.000" (1.00 to 125.00 mm), carbon steel |
| Accuracy | ±0.001" (±0.03 mm) |
| Resolution | 0.001" (0.01 mm) |
| Thru-paint capability | No; remove coating at the measurement point for best accuracy |
| Compensation | Automatic V-path compensation; built-in temperature compensation |
| Measurement & Data | |
| Velocity range | 1,250 to 10,000 m/s (0.0492 to 0.393 in/µs); pre-programmed material velocities |
| Adjustment | Single or two-point |
| Modes | Min Scan, Statistics, SmartCouple |
| Memory | 1,000 readings per probe; 100 screen captures; date and time stamped |
| Connectivity | USB, with PosiSoft USB Drive and PosiSoft software |
| Units | Inch or mm, switchable |
| Gage Body & Power | |
| Display | 2.8" impact-resistant color touchscreen; auto rotating with Flip Lock |
| Enclosure | IP65 weatherproof, dustproof and water-resistant; rubberized grip and protective holster |
| Power | 3 × AAA batteries, over 20 hours continuous; USB power |
| Languages | 15 selectable display languages |
| Standards | ASTM E797; Long-Form Certificate of Calibration traceable to NIST or PTB |
What's in the Box
 |
Standard DeFelsko package. Contents can vary by package, so contact us to confirm what ships with your order. |
Complete your inspection kit
Add a DeFelsko Certified Step Block for daily verification, extra couplant and the AC power kit. For painted structures, consider the PosiTector UTG M multiple-echo thru-paint probe. For A-scan, B-scan, WiFi and Bluetooth, step up to the PosiTector Advanced body.
Applications
The PosiTector UTG CX1 measures remaining wall thickness wherever access is limited to one side, even in harsh conditions.
| ✓ Corrosion and erosion on tanks | ✓ Pipes and piping |
| ✓ Heavily corroded or pitted back walls | ✓ Ships and marine structures |
| ✓ Refineries and abrasive blast areas | ✓ Cargo truck tank shells |
| ✓ Plastics and non-metallic materials | ✓ Infrastructure and asset integrity |
Downloads
| ⬇ UTG CX1 Cut Sheet (PDF) | ⬇ Product Literature (PDF) | ⬇ Instruction Manual (PDF) |
About DeFelsko
DeFelsko Corporation is a leading U.S. manufacturer of coating thickness gages and inspection instruments, delivering simple, durable and accurate gages since 1965. Family owned and operated in Northern New York, its facility houses research, development, manufacturing, quality, sales, training and service under one roof.
