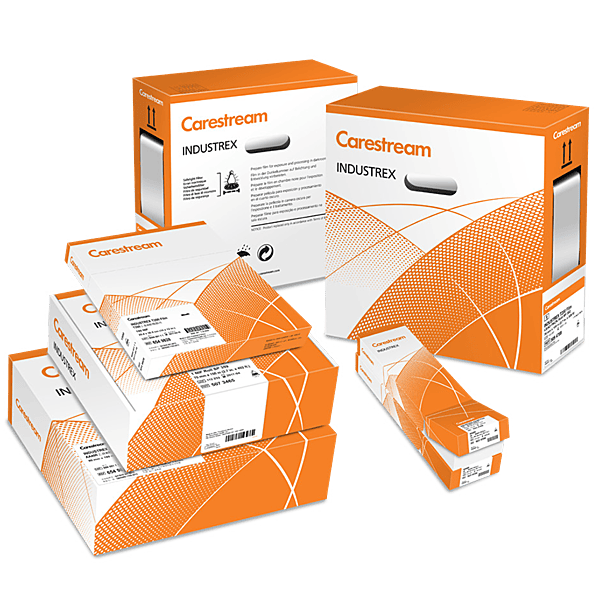

Carestream INDUSTREX M100 | High-Contrast NDT Radiographic Film
The Industry Standard for Versatility and Image Quality
INDUSTREX M100 is the workhorse of the NDT radiography industry. Engineered for critical inspections where high contrast and fine grain are essential, it provides the perfect balance between speed and resolution. Utilizing Carestream’s patented T-GRAIN Emulsion technology, this film is designed to provide exceptional sensitivity for a wide range of materials and thicknesses, from light alloys to thick-walled steel components.
Key Performance Features
T-GRAIN Emulsion Technology: This advanced grain structure provides a "clean," cold image tone with significantly reduced noise, allowing for easier interpretation of tight cracks and subtle defects.
High Contrast & Fine Grain: Classified as a high-contrast film, it ensures that even small density changes (indicating defects) are clearly visible to the inspector.
Wide Exposure Latitude: Offers excellent flexibility across various energy levels, making it suitable for use with both X-ray generators and gamma-ray sources (Iridium-192 or Cobalt-60).
Robust Handling: Features a specialized top-coat that provides superior resistance to static, scratches, and pressure marks, reducing the number of "retakes" due to handling artifacts.
Process Stability: Highly consistent results whether using manual processing or high-speed automatic processors.
Technical Specifications & Compliance
| Feature | Specification |
| SKU | 5258504 |
| Film Class (ASTM E1815) | Class I |
| Film Class (EN ISO 11699-1) | Class 3 |
| Packaging Type | NIF (Non-Interleaved / Bulk Pack) |
| Sheet Size | 7 x 17 inches (17.8 x 43.2 cm) |
| Quantity | 100 Sheets per box |
| Base Support | Blue-tinted Polyester (7 mil) |
Physical Dimensions & Weight
| Attribute | Specification (Metric) | Specification (Imperial) |
| Total Weight (Approx.) | ~2.85 kg | ~6.3 lbs |
| Sheet Dimensions | 178 x 432 mm | 7 x 17 in |
| Box Thickness | ~45 mm | ~1.8 in |
Ideal Applications
Oil & Gas: Inspection of pipeline welds and pressure vessel seams.
Power Generation: Radiography of boiler tubes and structural components.
Aerospace: Examination of airframe castings and engine assemblies.
Automotive: Quality control for safety-critical forged and cast parts.
