NM01SPY13387

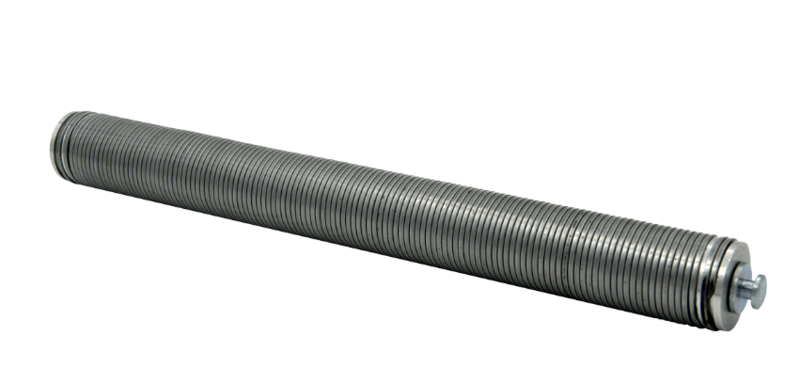

The SPY ELECTRODE SPRING 34 IN is a crucial accessory designed for use with pipeline coating holiday detectors, specifically those manufactured by or compatible with SPY (P.I.I. Line Equipment). This spring-loaded electrode is engineered to provide consistent and reliable electrical contact with the surface of coated pipelines or other cylindrical structures during holiday detection surveys.

The primary function of the electrode spring is to facilitate the completion of an electrical circuit between the holiday detector and the conductive substrate beneath the non-conductive coating. When the electrode passes over a discontinuity (holiday, pinhole, or void) in the coating, the circuit is completed, triggering an indication on the holiday detector.

The "34 IN" designation most likely refers to the approximate nominal diameter of the pipeline or cylindrical structure that this electrode spring is designed to inspect. This size specification ensures optimal contact and coverage for pipes of this approximate diameter, allowing for efficient and accurate holiday detection. The spring mechanism integrated into the electrode design ensures consistent pressure and contact with the coated surface, even when encountering slight irregularities or variations in the pipe's contour.

Manufactured to meet the demands of pipeline inspection professionals, the SPY ELECTRODE SPRING 34 IN is constructed from durable materials to withstand the rigors of field use. Its design ensures effective and reliable performance, contributing to the accurate assessment of pipeline coating integrity and the prevention of corrosion.

Key Features and Benefits:

• Spring-Loaded Design: Ensures consistent and reliable electrical contact with the coated surface.

• 34 IN Specification: Optimized for use on pipelines and cylindrical structures with an approximate nominal diameter of 34 inches.

• Facilitates Holiday Detection: Enables the completion of an electrical circuit to identify coating discontinuities.

• Durable Construction: Built to withstand the demands of field inspection.

• Compatible with SPY Equipment: Designed for use with holiday detectors from SPY (P.I.I. Line Equipment) or compatible systems.

• Contributes to Coating Integrity: Essential for accurately assessing and ensuring the effectiveness of pipeline coatings.

Applications:

• Inspection of protective coatings on pipelines with an approximate nominal diameter of 34 inches.

• Holiday detection on other cylindrical structures of similar dimensions.

• Use as a replacement or additional electrode for SPY or compatible pipeline coating holiday detectors.
