Non-Magnetic Single Element Contact Transducers, Fastener Material Types: All metals, 1/4", 5 Mhz, Model – FCR5025T, Microdot, side entry. DAKOTA NDT

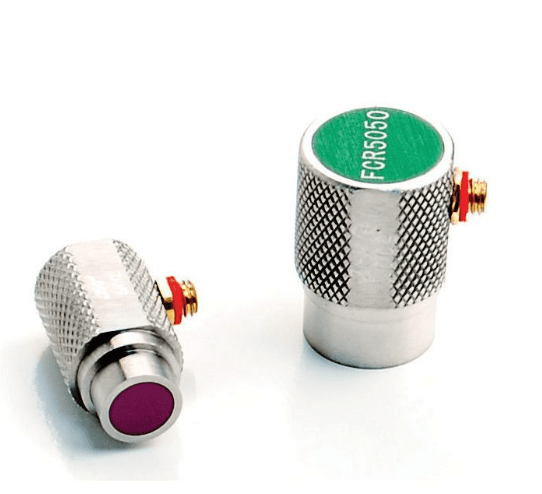

The DAKOTA NDT FCR5025T Non-Magnetic Single Element Contact Transducer is a versatile probe designed for ultrasonic thickness gauging on all metals. This transducer features a 1/4 inch diameter and operates at a frequency of 5 MHz, offering a good balance of sensitivity and resolution for a wide range of material thicknesses.
The Model – FCR5025T designation specifies a particular configuration within Dakota NDT's single element transducer line, likely optimized for general-purpose contact thickness measurements. It is equipped with a Microdot connector for reliable signal transmission and a side entry cable configuration, which can be advantageous in certain inspection setups where top entry might be inconvenient or obstruct access.
Key Features:
Single Element: A single crystal design suitable for various thickness gauging applications.
Non-Magnetic: Constructed with non-magnetic materials, preventing interference in magnetic environments or when testing magnetic materials.
Versatile Material Application: Compatible with thickness measurements on all metals.
Optimal Size: 1/4 inch diameter provides a good balance between contact area and focusing.
Mid-Range Frequency: 5 MHz offers a blend of penetration and resolution for general-purpose testing.
Microdot Connector: Ensures a secure and reliable connection to ultrasonic instruments.
Side Entry Cable: Offers flexibility in cable routing and transducer placement.
Contact Transducer: Designed for direct contact with the test surface using an ultrasonic couplant.
Benefits:
Wide Range of Applications: Suitable for thickness measurement on various metal types.
Good Balance of Performance: 5 MHz frequency provides a versatile solution for many materials and thicknesses.
Reliable Connection: Microdot connector ensures consistent signal transmission.
Convenient Cable Routing: Side entry design offers flexibility in tight spaces.
Durable Construction: Built to withstand the demands of industrial use.
Applications:
General-purpose ultrasonic thickness gauging on metallic materials.
Thickness measurement in manufacturing, quality control, and maintenance applications.
Corrosion surveys on metallic structures.
Inspection of pipes, tanks, and vessels made of various metals.
Thickness measurement of machined parts and components.
