High-Resolution TOFD Kit in a Rugged HDPE Case: Superior NDT for Thinner Materials

This is an all-inclusive, professional-grade kit for Time-of-Flight Diffraction (TOFD), a powerful ultrasonic inspection method. It is designed to equip NDT technicians and welding inspectors with a complete, field-ready solution for the highly accurate detection and sizing of flaws in thinner welds and materials. Each component has been carefully selected for optimal performance, durability, and versatility, all securely protected within a rugged High-Density Polyethylene (HDPE) case.

Precision Transducer for High-Resolution Inspections

At the core of this kit is a precision-engineered 5 MHz TOFD transducer. This high frequency is specifically chosen for applications where a higher level of detail is required. It provides exceptional near-surface resolution and the ability to detect very small flaws that lower-frequency transducers might miss. The transducer's 6mm element is ideal for the TOFD technique, generating a broad acoustic beam that ensures reliable coverage for accurate flaw sizing. A robust Microdot (MD) connector provides a secure, low-profile connection that is both reliable and well-suited for high-frequency signal transmission.

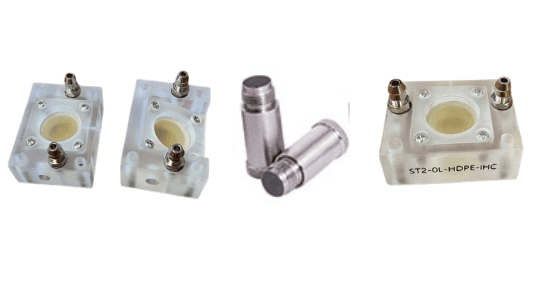

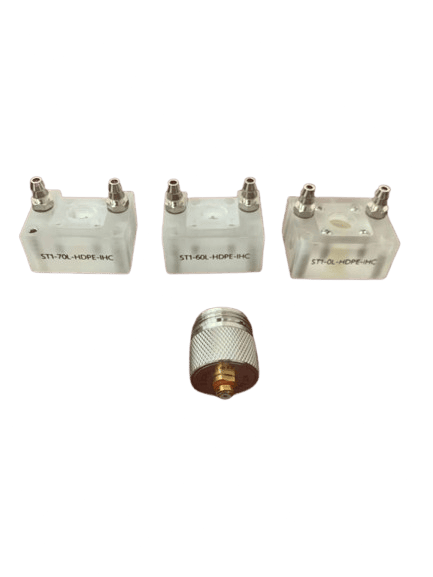

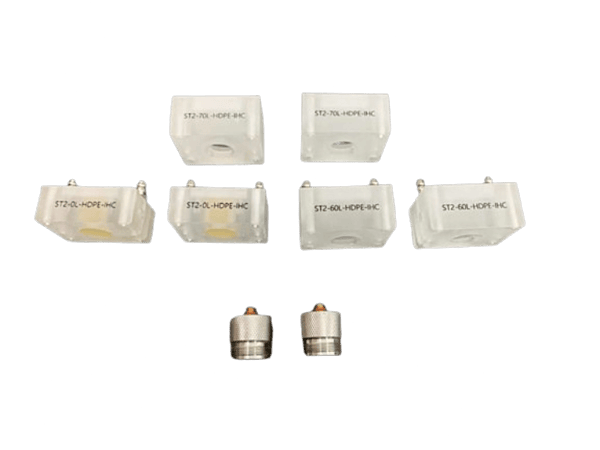

Versatile Wedge Set for Comprehensive Coverage

A key advantage of this kit is its complete set of three precision-machined wedges. These are essential for converting the transducer's longitudinal wave into angled shear waves, allowing you to adapt to virtually any inspection requirement.

• 0° Wedge (Straight Beam): This wedge is used for a straight-on, compression-wave inspection. It's an indispensable tool for preliminary scans to detect lamination or lack of fusion.

• 60° Wedge: This is the industry-standard angle for shear wave TOFD inspection. It's ideal for scanning the main volume of a weld to accurately locate and size flaws like cracks and porosity.

• 70° Wedge: A steeper angle that is crucial for detecting flaws located very close to the top and bottom surfaces of the weld, ensuring a complete and thorough inspection that might be missed by shallower angles.

Unparalleled Durability with HDPE Case

This entire kit is housed in a purpose-built High-Density Polyethylene (HDPE) case. HDPE is a top-tier material for protective equipment, renowned for its exceptional impact and chemical resistance. This lightweight yet incredibly strong case ensures your sensitive NDT instruments are shielded from the rigors of transportation and harsh industrial environments. Its robust construction provides peace of mind, knowing that your tools are safe from drops, impacts, dust, and moisture.

What's in the Box?

• 1 x TOFD Transducer (5MHz, 6mm, Microdot Connector)

• 1 x 0-Degree Wedge

• 1 x 60-Degree Wedge

• 1 x 70-Degree Wedge

• 1 x Rugged HDPE Case

Ideal Applications

• Inspection of Thinner-Walled Pipe and Tubing

• Detection of Small Cracks and Flaws

• Quality Assurance for Precision-Fabricated Components

• Aerospace and Other High-Resolution Applications

• Critical Weld Inspection on Thin Materials
