NM0324005

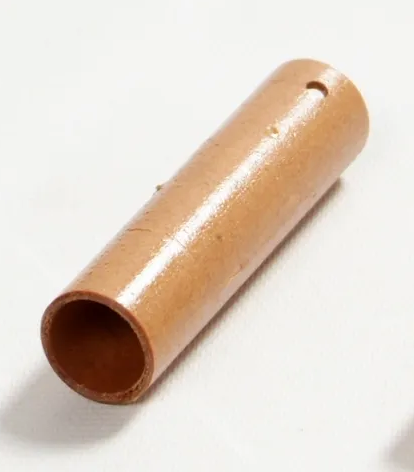

This connector is a single-pole, insulated female connector designed to handle high current loads up to 300 amperes. The "regular sleeve" typically refers to the insulated outer body that encases the conductive metal parts, providing electrical isolation and physical protection. These connectors are built for robust industrial environments where reliability and safety are paramount.

They facilitate quick and secure connections of heavy-gauge electrical cables, often in welding applications for connecting welding leads, or in industrial settings for temporary power distribution, generators, and heavy machinery. The female connector features a receptacle designed to receive a corresponding male plug, forming a reliable electrical connection.

Key Features & Benefits:

• High Current Capacity: Rated for 300 Amperes, suitable for heavy-duty electrical applications.

• Female Connector: Designed to accept a male plug, forming a secure connection. The female contact is typically recessed within the insulated sleeve for safety, minimizing the risk of accidental shorting.

• "Regular Sleeve" Design: Refers to the insulated outer jacket that provides electrical insulation and protection for the conductor. This sleeve is typically made from:

  • Durable, Insulated Material: Often high-quality rubber, thermoplastic elastomer (TPE), reinforced epoxy, or similar synthetic compounds that are resistant to heat, oil, abrasions, moisture, and impact.

• Conductive Material: The internal contact (socket) is usually machined from a highly conductive material like brass, copper, or copper alloy to ensure minimal resistance and efficient current flow.

• Cable Connection: Designed to accept large gauge cables (e.g., #1 AWG to 2/0 AWG or 35-70 sq mm), secured via:

  • Set Screw (Ball Point): A common method where the cable strands are inserted into a bore and secured by tightening a set screw, providing strong mechanical and electrical connection.

  • Compression/Crimp: Some designs allow for crimping the cable into the connector for a permanent, low-resistance connection.

• Positive Cam-Lock / Twist-Lock (common in welding/cam-lock styles): Many designs feature a cam-action or twist-lock mechanism that ensures a tight, secure fit and prevents accidental disconnection due to pulling or vibration.

• Safety: The insulated sleeve and recessed contacts are critical safety features, preventing accidental contact with live electrical parts.

• Interchangeability: Many designs (especially common welding styles like Tweco or Dinse) are designed to be interchangeable with connectors from other manufacturers that adhere to the same industry standard.

• Rugged Construction: Built to withstand harsh industrial environments, including exposure to sparks, spatter, oils, and physical abuse.

Common Types and Standards:

• Welding Cable Connectors:

  • Tweco-Style: Popular in North America, often featuring a male tapered plug that twists into a female socket.

  • Lenco-Style: Similar to Tweco, offering robust connections.

  • Dinse-Style (Euro-style): Common in Europe and increasingly worldwide, characterized by a quick-connect twist-lock mechanism. The 35-50 or 50-70 sq mm sizes often correspond to 200A-300A or 300A-400A ratings.

• Cam-Lock Style Connectors: (e.g., Hubbell, PowerMate, other single-pole power connectors). These are often used for temporary power distribution in entertainment, construction, and industrial applications. They typically feature a robust, insulated body and a "cam" or twist-lock action.

Applications:

• Arc Welding (MIG, TIG, Stick/SMAW): Connecting welding leads (electrode holders and ground clamps) to welding power sources, or extending welding cables.

• Temporary Power Distribution: Providing power connections for portable generators, power distribution panels, and temporary lighting/sound systems in construction sites, events, and industrial facilities.

• Heavy Industrial Equipment: Connecting power to motors, pumps, heaters, and other machinery requiring high amperage.

• Heat Treatment: Used in pre- and post-weld heat treatment processes for connecting heating elements and control instrumentation.

• Marine & Shipyard: For shore-to-ship power, welding, and other high-current connections.
