The DAKOTA NDT Dual Element Transducer is a high-performance ultrasonic transducer engineered for exceptional near-surface resolution in precision thickness gauging and flaw detection applications. This transducer operates at a frequency of 7.5 MHz with a compact 1/8 inch element diameter, making it ideally suited for detailed examinations of thin materials and detection of minute discontinuities.

The dual element design features separate transmitting and receiving crystals, providing significant advantages such as enhanced near-surface resolution, improved coupling on rough or curved surfaces, and reduced interference from delay line effects in certain high-temperature scenarios. The focused ultrasonic beam generated by the angled elements optimizes sensitivity within the inspection zone.

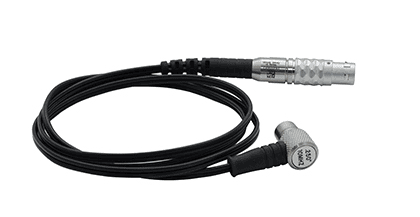

This specific model is potted with a permanently attached and sealed cable, offering a robust and environmentally protected connection that resists moisture and dust ingress. The side connector provides a convenient and space-saving cable exit, allowing for flexible routing in confined areas. The transducer is encased in a high wear stainless steel casing, ensuring exceptional durability and resistance to abrasion in demanding industrial environments.

The 7.5 MHz frequency delivers superior resolution for detecting very small flaws and accurately measuring thin materials. The 1/8 inch element size further enhances resolution and sensitivity to small anomalies by focusing the ultrasonic beam. This combination makes it an excellent choice for critical inspections requiring high detail in the near-surface region.

Key Selling Points:

• Exceptional Near-Surface Resolution: Dual element design and high frequency excel at detecting minute flaws close to the surface.

• Optimal for Thin Materials: High frequency and small element size allow for precise thickness measurements.

• Robust and Durable: High wear stainless steel casing ensures longevity in demanding environments.

• Environmentally Protected: Potted cable provides a secure and sealed connection against moisture and dust.

• Convenient Side Connector: Offers flexible cable routing, particularly in tight spaces.

• Enhanced Performance on Challenging Surfaces: Dual element design improves coupling on rough or curved materials.

Benefits:

• Detects Very Small Flaws: High frequency and focused beam enable the identification of minute discontinuities.

• Provides Accurate Thickness Measurements: Ideal for precise gauging of thin materials.

• Ensures Long Service Life: Durable construction withstands harsh industrial conditions.

• Reliable Performance: Potted cable guarantees a stable and protected connection.

• Improves Accessibility: Side connector allows for use in confined spaces.

Applications:

This dual element transducer is well-suited for demanding applications requiring high near-surface resolution, including:

• Precision thickness measurement of thin-walled components.

• Early stage corrosion detection and mapping.

• Detection of very small surface and near-surface cracks, pitting, and other minute flaws.

• Inspection of components with complex geometries and limited access.

• Certain high-temperature applications (within specified limits).
