NM01Ni2040QE29

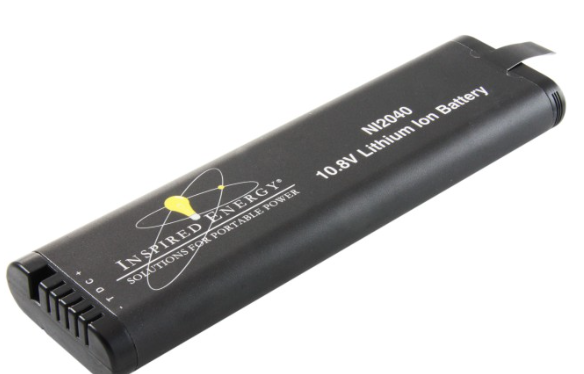

The Smart SMBus Battery Pack Ni2040QE29 is an intelligent and high-performance power solution designed for various portable electronic devices. This battery pack operates at a nominal voltage of 10.8V and is engineered to deliver a current of less than 10A, making it suitable for applications requiring moderate power consumption.
With a typical capacity of 8.4Ah (Amp-hours) and a corresponding energy rating of 90Wh (Watt-hours), this battery pack offers substantial runtime for your devices. The minimum capacity is specified at 8.1Ah (87Wh), ensuring a reliable level of performance.
This is a Smart SMBus (System Management Bus) battery pack, meaning it incorporates intelligent circuitry for communication with the host device. This allows for features such as accurate battery status monitoring (remaining capacity, voltage, temperature), charging control, and safety protections.
The Ni2040QE29 designation is a specific model number, likely indicating the manufacturer and specific characteristics of the battery cells and internal electronics. Importantly, this battery pack is noted as being equivalent to the LI204SX, suggesting it can serve as a compatible replacement for devices originally designed to use that lithium-ion battery model. While the "Ni" in the model number might suggest Nickel-based chemistry, the direct equivalence to a "LI" (Lithium-ion) battery strongly implies this is a Lithium-ion battery designed to be functionally compatible with systems using the LI204SX. This is common in smart battery systems where form factor and communication protocols are matched for interchangeability.
Key Features:
Smart SMBus Technology: Enables intelligent battery management and communication with the host device.
Voltage: 10.8V nominal operating voltage.
Current: Designed for applications requiring less than 10A.
Typical Capacity: 8.4Ah (90Wh) for extended runtime.
Minimum Capacity: 8.1Ah (87Wh) ensuring reliable performance.
Equivalent to LI204SX: Provides compatibility as a replacement battery for systems using the LI204SX.
Lithium-ion Chemistry (Likely): Offers high energy density and long cycle life, despite the "Ni" in the model number.
Safety Features: Integrated circuitry provides protection against over-charge, over-discharge, over-current, and short circuits.
Benefits:
Long and Reliable Power: High capacity provides extended operating time for portable devices.
Intelligent Battery Management: SMBus communication ensures accurate status monitoring and optimized charging.
Direct Replacement Option: Compatibility with LI204SX simplifies battery replacement.
Enhanced Safety: Built-in protections safeguard both the battery and the connected device.
Lightweight and Portable: Lithium-ion technology offers a good balance of energy density and weight.
Applications:
Portable medical devices
Industrial handheld terminals
Mobile workstations
Ruggedized laptops and tablets
Other portable electronic equipment designed for SMBus smart batteries and compatibility with the LI204SX.
