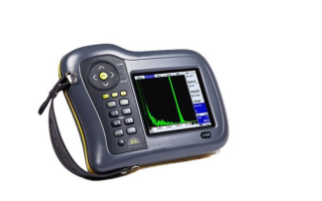

Sonatest Sitescan D-50 BNC Kit Flaw Detector with DAC, AWS and API Software
SKU: D-50BKIT
A rugged broadband ultrasonic flaw detector with a full VGA color display, 10.5-hour battery and built-in DAC, AWS and API sizing software, made for weld, pipe and general UT inspection.
| 200 V50 ns pulser | VGA640 × 480 color display | 10.5 hBattery life | 1.3 kg2.9 lb with battery |
The Sonatest Sitescan D-50 is a broadband ultrasonic flaw detector in the popular, portable casing of the D-Series. It pairs a full VGA color display with a 50 ns, 200 V spike pulser and 0.5 dB gain resolution, ready for weld fabrication, corrosion detection, forgings and castings, and general UT inspection.
This BNC kit comes with DAC as standard plus the AWS and API software options, giving inspectors code-based defect sizing for structural welds and pipe straight out of the box. Integrated sizing software reduces analysis time, which helps service companies that work to different customer codes.
Key Features
 | DAC, AWS and API sizing includedDAC comes standard, with a library of curves meeting EN 1714, ASME, JIS and other standards, plus custom curves and DAC-to-TCG conversion. This kit adds AWS D1.1 calculations and API 5UE flaw sizing, with amplitude readout in % full screen height, % DAC or dB. |
Rugged and reliableThe enclosure is made from automotive-grade, impact-resistant materials with excellent water resistance. Environmental testing confirmed the D-50 works at temperatures above 55°C, and the 10.5-hour battery can be swapped without tools. |  |
Built for the Field
Full VGA color display
The 640 × 480 transflective color screen stays visible in any lighting, with adjustable brightness, a sunlight-readable high-contrast mode and a choice of color palettes, including black-on-white LCD emulation.
Broadband performance
A 200 V, 50 ns square-wave pulser, 200 MHz digitization at 10-bit resolution, adjustable PRF from 35 Hz to 1 kHz and selectable 50 or 400 Ω damping cover a wide range of probes and materials.
Fast setup tools
AutoCal calculates velocity and probe zero from two reference echoes, and Automatic Gain Control sets the gated signal to your chosen height. A reference waveform and active peak memory make comparisons quick.
Free UT-Lity Lite software
View and manage calibrations, A-scans, B-scans and thickness logs on the instrument and PC, create custom report templates and PDFs, and update firmware as new releases become available.
Room to grow
Add Split DAC, DGS/AVG, TCG, BEA, Interface Trigger or Corrosion software later as your inspection work expands.
Specifications
| General | |
| Manufacturer | Sonatest |
|---|---|
| Model | Sitescan D-50 |
| SKU | D-50BKIT |
| Instrument type | Digital broadband ultrasonic flaw detector |
| Transducer connectors | BNC (1 TX/RX, 1 RX) |
| Shipping dimensions (estimated) | 406 × 305 × 203 mm (16.0 × 12.0 × 8.0 in) |
| Shipping weight (estimated) | 4.1 kg (9 lb) |
| Ultrasonic | |
| Pulser | 200 V fixed, 50 ns square wave |
| PRF | Adjustable, 35 Hz to 1 kHz |
| Gain resolution | 0.5 dB |
| Damping | 50 or 400 Ω, selectable |
| Digitization | 200 MHz, 10-bit vertical resolution |
| Rectification | RF, full wave, positive and negative half-wave |
| Measurement modes | 7 |
| Gates | 2 |
| Software | |
| DAC | Standard: curve library (EN 1714, ASME, JIS and more), custom curves, DAC-to-TCG conversion |
| AWS | Included: AWS D1.1 calculation and display |
| API | Included: API 5UE flaw sizing |
| Optional upgrades | Split DAC, DGS/AVG, TCG, BEA, Interface Trigger, Corrosion (T-Log and B-Chart) |
| Data software | UT-Lity Lite included free; UT-Lity Pro optional |
| Display | |
| Type | Color TFT LCD, transflective, anti-glare, LED backlight |
| Size and resolution | 117 × 87 mm, 640 × 480 pixels (full VGA) |
| High-contrast mode | Yes, sunlight readable |
| Physical & Power | |
| Dimensions (W × H × D) | 238 × 172 × 70 mm (9.4 × 6.8 × 2.8 in) |
| Weight | 1.3 kg (2.9 lb) with battery |
| Battery | Li-ion pack, 14.8 V, 4.4 Ah; tool-free replacement |
| Battery life | Typically 10.5 hours of continuous work |
| Charger | 100–240 V AC, 50–60 Hz |
| Other connections | Lemo 4-pin encoder, USB (internal storage as memory device); video output as factory option |
What's in the Box
- Sonatest Sitescan D-50 digital flaw detector, BNC version
- DAC (standard), AWS and API software
- Battery, charger and charger mains cable
- Carry bag and display window cover
- UT-Lity software and USB cable
- User guide
- Certificate of instrument calibration and conformity
Contents can vary by package, so contact us to confirm what ships with your order.
Complete your UT setup
Add the BNC transducers and cables for your inspections, plus couplant and calibration blocks. Optional D-Series accessories include a Storm hard case, protective sleeve and mounting brackets.
Applications
The Sitescan D-50 suits everyday UT inspection in the shop and the field, from code-based weld work to corrosion checks.
| ✓ Weld fabrication | ✓ Corrosion detection |
| ✓ Structural welds to AWS D1.1 | ✓ Pipe inspection to API 5UE |
| ✓ Forgings and castings | ✓ General UT inspection |
| ✓ Fabrication QA/QC | ✓ NDT service company work |
Downloads
| ⬇ Product Brochure (PDF, 4.3 MB) | ⬇ Full Specifications (PDF, 0.2 MB) |
About Sonatest
Founded in 1958, Sonatest is a leading manufacturer of ultrasonic inspection equipment, including flaw detectors, thickness gauges, phased array and TOFD systems, probes, wedges and scanners. Thousands of customers, including Shell, Airbus, Siemens and ArcelorMittal, use Sonatest instruments to keep their products and processes safe and reliable.
