NM01MS700BKIT

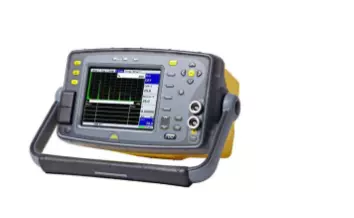

The Masterscan 700M offers the end user a high end narrowband flaw detector with a full VGA display, sync and proportional outputs, sync input and a Spike and Square Pulser.
Features can be added and upgrades performed in the working environment, reducing downtime and increasing working flexibility. High levels of near surface resolution, penetrating power (450V pulser - square and spike) and excellent signal to noise ratio are key functions in the Masterscan range.
Typical applications are Weld Fabrication, Corrosion Detection, Composite Inspection, Bond Testing, Forgings & Castings, Power Generation (including EMATS) and general UT inspection.
Technical Details:
Test Range | 0-1mm (0.04in) up to 0-20,000mm (787in.) in steel at 5930m/s (19455f/s) |
Velocity | 256 - 16000m/s continuously variable |
Probe | Zero 0 to 1000μs |
Delay | 0-20,000m (800in) in steel at 5930m/s |
Gain | 0 to 110dB adjustable in 0.1, 0.5, 1, 2, 6, 14 and 20dB steps |
Test Modes | Pulse echo and transmit/receive. Single Crystal, Double Crystal and Pitch-Catch |
Damping | 50 and 400Ohm damping selectable |
Pulser | 100-450V -ve spike and square wave. Pulse Width from 30nS to 2500nS. Rise/Fall times <5nS into 50R load |
P.R.F. | Adjustable 5Hz to 6kHz. External sync also available |
Screen Update Rate | 60Hz |
Rectification | RF, Full wave, +ve half-wave and -ve half-wave |
Frequency Range | 8 selectable filter bands. i) 100kHz - 500kHz ii) 200kHz - 800kHz iii) 0.4MHz - 1.6MHz iv) 1.4MHz - 3MHz v) 3MHz - 8MHz vi) 7MHz - 15MHz vii) 9MHz - 21MHz viii) 1.6 MHz - 33 MHz (Wideband) Additional tuned low frequency pre-amp with Dryscan option |
System Linearity | Vertical = 0.5% Full Screen Height (FSH). Horizontal +-0.2% Trace Full Screen Width (FSW) |
Reject (Selectable) | Up to 80% Linear reject (removes baseline noise without affecting indication amplitude) Or Up to 50% Suppressive reject (increase zero offset and reduces amplitude of all echoes) LED Warning when active. |
Units | Metric (mm), inch (in) or microseconds |
Display | Colour Transflective VGA (640 x 480) TFT. Display area: 116.16 x 87.2mm (4.57 x 3.43in). A-Scan Area: 400 x 510pixels (normal), 460 x 620 (FS). Colours: 9 colour options with variable brightness. |
Gate Monitor | Two independent gates for measurement and monitoring. Start and width fully adjustable over the entire range of the instrument. Levels adjustable from 0% to 100%, positive or negative triggering on each gate with audible & visual alarms. Gate resolution is 5nS. |
Zoom | Expands range and delay to cover the area set by Gate 1 start & width controls. |
AGC | Automatic Gain Control automatically sets the signal in Gate 1 to a level between 10% and 90% FSH, tolerance between 5% and 20%. |
Measurement Nodes | |
Mode 1 | Signal monitor, Gate alarms can be active but no measurements are displayed |
Mode 2 | Depth and amplitude of first signal in gate |
Mode 3 | Echo-Echo distance measurements |
Mode 4 | Trigonometric display of beam-path, surface distance (including X-offset) and depth of indication from the inspection surface together with echo amplitude. Curved surface correction can be applied for convex and concave surfaces. Half-skip can be indicated on screen. |
Mode 5 | Gate to Gate distance measurement |
Mode 6 | Flank to Flank |
Mode 7 | Beam Angle, calculated from beampath, hole radius and hole centre depth. |
Measurement Display | Live display and updates on screen at 3 times per second. Large display of a single measurement available. |
Contour | Trailing-Edge slew-rate control to reduce half cycles in rectified modes. Selectable from one of 6 levels. |
Waveform Smoothing | Select from: i) None (both min and max values are displayed in the A-Scan) ii) Fill (Min values set to baseline value, produces a solid A-Scan) iii) Smooth (min values ignored, produces a clear outline A-Scan) |
Persistence | Causes previous A-scans to “fade out” at a user-determined rate |
Auto-Cal | Provides automatic calculation of velocity and probe zero from 2 reference echoes |
Reference Waveform | Displays a previously stored A-log in a colour different from the active display: enabling a quick visual check of the differences |
Clock | Built in, battery-backed RTC keeps time and date. Visible on the status line, always stored with Panels, A-logs etc. |
Internal Memory | 4GByte storage available for A-scans, panels, T-logs, B-logs etc. 450,000 Panels, 200,000 A-Logs, 300,000 B-Charts, 440,000 T-Logs |
Active Peak Memory | Retains all A-scans on screen for echo-dynamic pattern analysis, with the active A-scan displayed in a separate colour |
Notes | Alphanumeric labelling for panel stores, A-logs, B-logs etc. |
Display Freeze | Hold the current waveform on screen for off-line processing |
Help Key | Shows software and hardware information |
Language Support | Multiple languages are selectable from a list including: English, French, Spanish, Russian, Chinese (Modern). Others are available on request |
Encoder Connection | Lemo min 4-pin connector (D70) D-Sub 15 connector (700M) |
Video Output | Standard |
Proportional Outputs | Available |
External Sync | Available |
USB Connection | Internal storage shown as Memory Device. |
Transducer Sockets | BNC or LEMO (factory option). |
Power | Battery life for MS700 is 13.5 hours and for D-70 it is 10.5 hours. |
Charger | 100-240 VAC, 50-60Hz. |
Environmental | Designed to meet IP67 |
Temperature | Operating -10°C to 55°C (14°F - 131°F). Storage -40°C to 75°C (-40°F - 167°F) |
Size | H145mm x W255mm x D145mm (5.7in x 10 in x 5.7in) |
Weight | 2.5kg (5.5lbs) with battery. |
Warranty | 2 year |
Extended Warranty | Sonacover - extended 5 year warranty, including 4 calibrations. |
Calibration Standard | EN 22232-1 2020 (Detailed Specification available on request) |
Standards | Vibration to 514.5-5 Proc 1 Annex C Fig 6 Shock 516.5 Proc 1 15g/6ms Explosive atmospheres - MIL-STD 810G Method 511.5 Procedure I |
