NM01L124

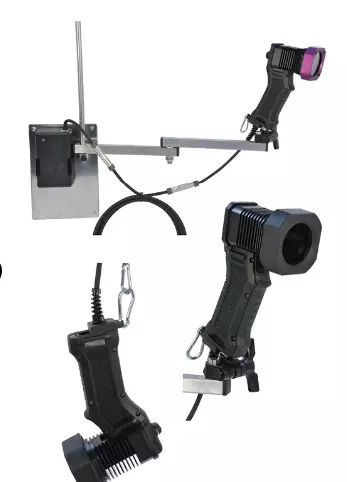

The Labino MB 3.0 UV LED Handheld ATLAS is a high-intensity, battery-powered UV LED lamp designed for demanding inspection tasks. It provides a wide, uniform beam of UV-A light, making it suitable for applications requiring thorough and reliable detection of fluorescent materials.

Key Features and Benefits:

• High Intensity:

  • Produces a high intensity of 9000 µW/cm², ensuring effective excitation of fluorescent indicators.

• Wide Coverage:

  • Features an 8-inch (20 cm) diameter irradiation area, allowing for efficient inspection of large surfaces.

• Battery Powered:

  • Portable and cordless design for convenient use in various locations.

• UV-A LED Technology:

  • Utilizes advanced UV-A LED technology for stable and reliable performance.

• Handheld Design:

  • Ergonomic and lightweight design for comfortable handheld operation.

• ATLAS Series:

  • Part of Labino's ATLAS series, known for its high-quality UV inspection lamps.

• Labino Quality:

  • Manufactured by Labino, a reputable company specializing in UV inspection equipment.

Applications:

• Non-Destructive Testing (NDT):

  • Fluorescent penetrant inspection (FPI).

  • Magnetic particle inspection (MPI).

• Leak Detection:

  • Detection of UV-sensitive tracer dyes in leak detection applications.

• Forensic Science:

  • Crime scene investigation and evidence examination.

• Industrial Inspection:

  • Quality control and inspection in manufacturing and maintenance.

• Aerospace Industry:

  • used to inspect aircraft parts for cracks and defects.

Key Specifications:

• Model: MB 3.0

• Irradiance: 9000 µW/cm²

• Irradiation Area: Ø 8 inches / 20 cm

• Power Source: Battery Powered

• Manufacturer: Labino
