NM01IQI462FE13
Tags:
IQI WIRE TYPE EN-462-1 & DIN 54 109, 1 FE EN, 13 ISO 19, 2"
$16.79
Choose Quantity
Product Details

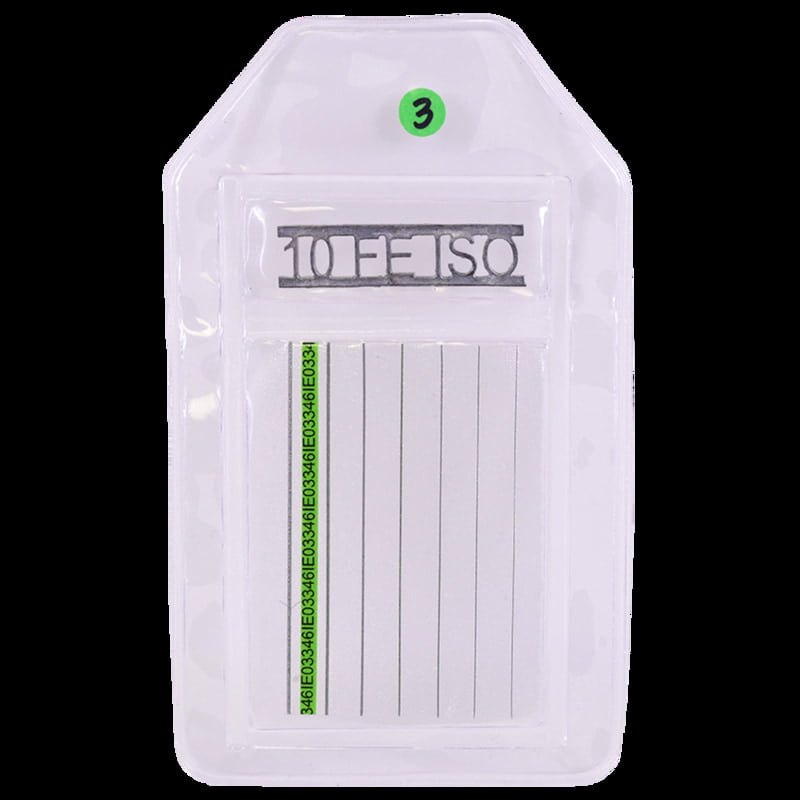

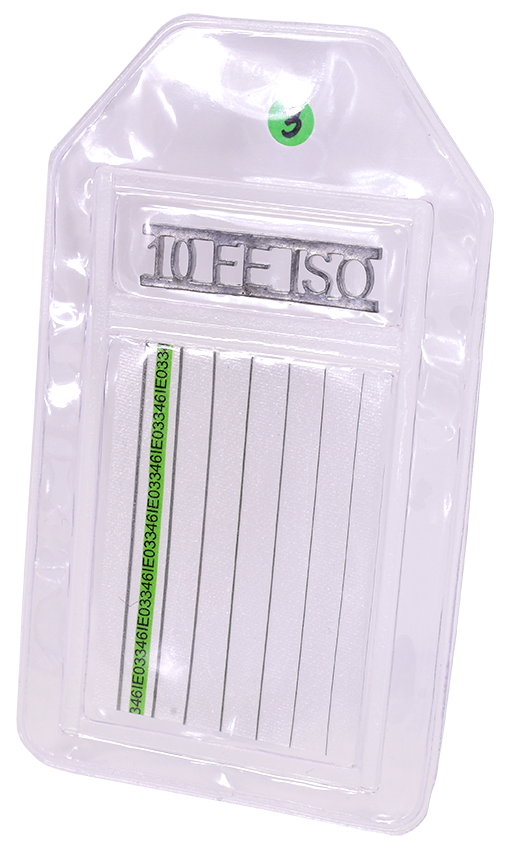

The IQI Wire Type EN-462-1 & DIN 54 109 image quality indicators (IQI) are designed for radiographic testing to evaluate image sensitivity and quality, replacing the former DIN 54, 109 standards with the EN-462-1 & ISO19232-1 requirements. Each set includes wire IQIs of varying sizes, enabling accurate and standardized assessment of radiographs across materials like Steel, Aluminum, Copper, and Titanium. They come in a range of sizes including 1 EN, 6 EN, 10 EN, and 13 EN, providing flexibility for different material thicknesses.
Specifications:
- Materials Available: Steel, Aluminum, Copper, and Titanium
- Standard Compliance: EN 462-1 & ISO19232-1, replaces DIN 54 109
- Identification: Lead symbol identifying largest wire, material, and "EN" specification
- Wire Length: 2 inches for enhanced usability across different applications
Wire IQI Sizes and Wire Diameters:
| Size | Wire Diameter | Wire Identity Numbers |
|---|---|---|
| 1 EN | .1259" (3.20 mm) | 1 |
| .0984" (2.50 mm) | 2 | |
| .0787" (2.00 mm) | 3 | |
| .0629" (1.60 mm) | 4 | |
| .0492" (1.25 mm) | 5 | |
| .0393" (1.00 mm) | 6 | |
| .0315" (0.80 mm) | 7 | |
| 6 EN | .0393" (1.00 mm) | 6 |
| .0315" (0.80 mm) | 7 | |
| .0248" (0.63 mm) | 8 | |
| .0196" (0.50 mm) | 9 | |
| .0157" (0.40 mm) | 10 | |
| .0126" (0.32 mm) | 11 | |
| .0098" (0.25 mm) | 12 | |
| 10 EN | .0157" (0.40 mm) | 10 |
| .0126" (0.32 mm) | 11 | |
| .0098" (0.25 mm) | 12 | |
| 13 EN | .0078" (0.20 mm) | 13 |
| .0063" (0.16 mm) | 14 | |
| .0049" (0.13 mm) | 15 |
Thickness Range for IQI Sizes:
- 1 EN: 1.6 - 6.0 inches (40 - 160 mm)
- 6 EN: 0.5 - 2.0 inches (12.5 - 50 mm)
- 10 EN: 0.2 - 0.75 inches (5.0 - 20 mm)
- 13 EN: 0.1 - 0.4 inches (2.5 - 10 mm)
