NM01MAP375045

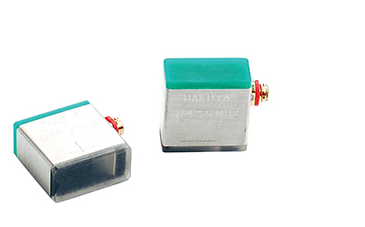

Reach Tight Spaces with Precision: Dakota NDT Miniature 45° Angle Beam Transducer

Navigate challenging geometries and access restricted areas with ease using this ultra-compact Miniature Angle Beam Potted (MAP) transducer from Dakota NDT. Engineered with a small 0.375” diameter and a focused 5 MHz frequency, this 45-degree angle beam probe delivers exceptional resolution for detailed inspections in even the most confined locations.

The precise 45-degree refracted angle is ideal for detecting and characterizing flaws with specific orientations, commonly encountered in weld inspections and other critical applications. The Microdot side entry connector offers maximum flexibility in cable routing, ensuring seamless integration into various inspection setups, especially where space is at a premium.

Built with a durable potted construction, this transducer is robust and well-protected against harsh environmental factors, guaranteeing reliable performance in demanding conditions. Its miniature design doesn't compromise on performance, providing the sensitivity needed to detect small discontinuities and accurately characterize flaws when utilizing the 45-degree angle beam technique.

Key Features:

• Ultra-Compact 0.375” Diameter: Provides unparalleled access to confined areas, sharp corners, and complex contours.

• Precise 45° Angle Beam: Optimized for detecting and characterizing flaws with specific orientations.

• High-Resolution 5 MHz Frequency: Delivers excellent sensitivity for detailed angled inspections.

• Convenient Microdot Side Entry Connector: Offers maximum flexibility in cable routing in tight spaces.

• Durable Potted Construction: Enhances robustness and protects internal components from harsh environments.

• Ideal for Restricted Access: Perfect for inspecting welds and components with complex geometries.

Applications:

• Highly detailed weld inspection in restricted access areas.

• Critical flaw detection near very tight corners and complex structural details.

• Inspection of small diameter tubes and pipes.

• General angle beam inspections where a small footprint is required.

Enhance your inspection capabilities in tight spaces. Invest in the Dakota NDT Miniature Angle Beam Potted (MAP) 45° Transducer today.
