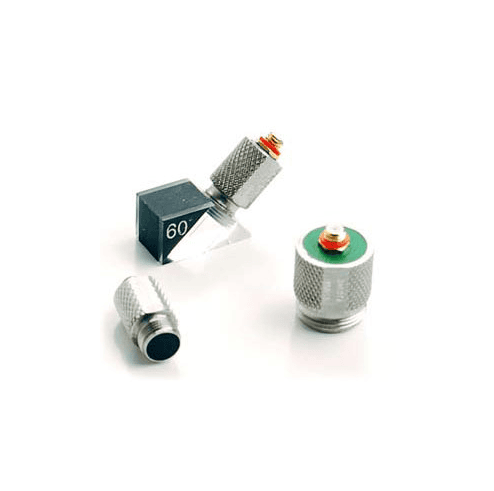

The DAKOTA NDT QCR5025 Quick Change Shear Wave Transducer (0.500", 2.25 MHz, Top Exit, Microdot Connector, High Resolution) is a specialized transducer engineered for efficient and high-resolution angled beam ultrasonic inspections. Its defining feature is the Quick Change (QC) mechanism, enabling swift and effortless interchangeability with compatible angle beam wedges, significantly enhancing inspection speed and versatility when multiple beam angles are required.

With a 0.500" (1/2") diameter element and a frequency of 2.25 MHz, this transducer is optimized for high resolution, making it ideal for detecting very small discontinuities, evaluating near-surface flaws, and inspecting thinner materials. The Top (TI) cable exit and Microdot (MIC) connector provide a common and reliable connection to ultrasonic testing instruments.

This transducer is a valuable tool for NDT professionals seeking efficient and highly detailed angled beam inspections, particularly in applications such as precision weld inspection, crack detection in critical components, and other tasks requiring high sensitivity to small flaws in accessible areas.

Key Features:

• Quick Change (QC) Design: Enables rapid, tool-free interchangeability with compatible angle beam wedges.

• High Resolution: Optimized for detecting very small discontinuities and near-surface flaws.

• Versatile 2.25 MHz Frequency: Offers a good balance of resolution and penetration for many applications.

• Convenient Top (TI) Cable Exit: Allows for flexible probe positioning.

• Reliable Microdot (MIC) Connector: Ensures secure and low-noise signal transmission.

• 0.500" (1/2") Diameter Element: A versatile size for various inspection needs.

Benefits:

• Increased Inspection Efficiency: Quickly switch between different beam angles or transducer configurations.

• Superior Detection of Small Flaws: High resolution capabilities for critical inspections.

• Versatile Application: Suitable for a wide range of angled beam inspection tasks.

• Easy Integration: Compatible with instruments using Microdot connectors and Quick Change wedges.

• Durable Construction: Built to withstand the demands of industrial NDT environments.

Applications:

• Precision weld inspection.

• Crack detection in critical components.

• Near-surface flaw evaluation.

• Inspection of thinner materials.

• Applications requiring high sensitivity to small flaws in accessible areas.
