NM01MAP375070

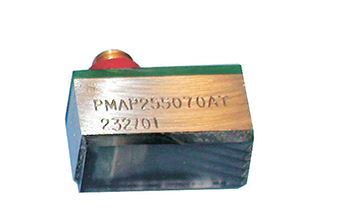

MINIATURE ANGLE BEAM POTTED (MAP), 0.375”, 5 MHz, 70°, Microdot Side Entry, DAKOTA NDT
Achieve Maximum Accessibility for Angle Beam Inspections: Dakota NDT Miniature 70° Transducer
When access is severely limited and detailed angle beam inspections are critical, rely on the Dakota NDT Miniature Angle Beam Potted (MAP) transducer. With its ultra-compact 0.375” diameter and a focused 5 MHz frequency, this 70-degree angle beam probe is specifically engineered to navigate the tightest spaces while delivering high-resolution flaw detection.
The precisely angled 70-degree refracted beam is ideal for detecting and characterizing flaws with specific orientations often encountered in demanding weld inspections and intricate component geometries. The Microdot side entry connector offers unparalleled flexibility in cable routing, allowing for seamless integration into even the most space-constrained inspection setups.
Featuring a robust potted construction, this miniature transducer is built to withstand challenging environments, ensuring reliable and consistent performance in demanding industrial applications. Its small size doesn't compromise its sensitivity, providing the necessary power to detect minute discontinuities and accurately evaluate flaws using the 70-degree angle beam technique in previously inaccessible areas.
Key Features:
Ultra-Compact 0.375” Diameter: Provides the ultimate access to extremely confined areas, sharp corners, and highly complex contours.
Precise 70° Angle Beam: Optimized for detecting and characterizing flaws with specific orientations often found in welds and intricate designs.
High-Resolution 5 MHz Frequency: Delivers excellent sensitivity for detailed angled inspections in the tightest of spaces.
Convenient Microdot Side Entry Connector: Offers maximum flexibility in cable routing for effortless integration in highly restricted areas.
Durable Potted Construction: Enhances robustness and protects internal components from demanding environments.
Ideal for Utmostly Restricted Access: Perfect for inspecting welds and components with the most complex and confined geometries.
Applications:
Highly detailed weld inspection in the most extremely restricted access areas.
Critical flaw detection near the tightest corners and complex structural details.
Inspection of small diameter tubes and pipes with virtually no access room.
General angle beam inspections where an exceptionally small footprint is absolutely essential.
Conquer the most challenging inspection environments. Invest in the Dakota NDT Miniature Angle Beam Potted (MAP) 70° Transducer today.
