NM01L121

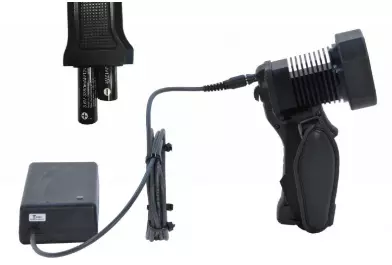

The Labino MB 3.0 UV HERMES (Mains) is a robust and reliable handheld UV LED inspection lamp designed for demanding industrial environments. This mains-powered version of the popular MB 3.0 series offers consistent and powerful UV-A illumination for non-destructive testing (NDT) and other inspection applications.

The MB 3.0 HERMES emits a peak wavelength of 365 nm, optimal for exciting fluorescent indicators used in magnetic particle and penetrant testing. It generates a nominal intensity of approximately 4,500 μW/cm² at a distance of 38 cm (15 inches), providing ample UV-A for clear indication detection. The beam size produced above 1,000 μW/cm² is approximately 9 inches (22 cm) in diameter, offering a wide inspection area.

This model is designed for continuous operation via a mains power supply (100-240V AC) and does not include a white light LED for post-inspection. Its rugged construction is IP68 waterproof and penetrant resistant, ensuring durability in harsh working conditions. The lightweight design (approximately 732 grams / 1.6 lbs for the mains version) and ergonomic pistol handle contribute to comfortable use during extended inspections.

Key Selling Points:

• Mains Powered for Continuous Use: Ensures uninterrupted operation without the need for battery changes.

• Optimal 365 nm UV-A Output: Effectively excites fluorescent indicators for NDT.

• High Intensity (4,500 μW/cm² at 15 inches): Provides strong UV-A for clear flaw detection.

• Wide Beam Coverage (9 inches at >1,000 μW/cm²): Allows for efficient inspection of larger areas.

• Rugged and Durable Design (IP68): Waterproof and penetrant resistant for demanding environments.

• Lightweight and Ergonomic: Comfortable for extended use.

• Complies with Industry Standards: Meets requirements such as ASTM E3022-18 and ISO 3059-12 (depending on the specific configuration and certifications).

Benefits:

• Reliable and Consistent Performance: Mains power ensures continuous operation without power loss.

• Effective Flaw Detection: High-intensity UV-A reveals even subtle indications.

• Increased Inspection Efficiency: Wide beam covers more area quickly.

• Durability in Harsh Environments: Robust design minimizes downtime and replacement costs.

• User Comfort: Lightweight and ergonomic design reduces operator fatigue.

Applications:

The Labino MB 3.0 UV HERMES (Mains) is ideal for various inspection applications, including:

• Fluorescent Penetrant Testing (FPT)

• Magnetic Particle Testing (MPT)

• Quality control in manufacturing

• Aerospace inspections

• Automotive inspections

• General industrial NDT
