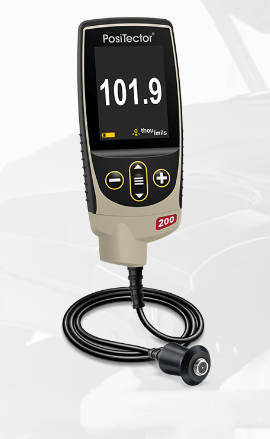

DeFelsko PosiTector 200 C3 Advanced Ultrasonic Coating Thickness Gage for Concrete and Non-Metal Substrates
SKU: 200C3
An ultrasonic coating thickness gage that non-destructively measures coatings on concrete, fiberglass and other non-metal substrates from 50 to 3,800 µm, with the Advanced body's multi-layer measurement, graphics mode, 250,000-reading memory, WiFi and Bluetooth.
| 50–3800 µm2 to 150 mils range | 3 layersIndividual layer thickness | 250,000Stored readings | WiFi + BTWireless connectivity |
The DeFelsko PosiTector 200 C3 uses proven ultrasonic technology to non-destructively measure coating thickness over concrete, fiberglass and other non-metal substrates, where magnetic and eddy current gages can't work. The ultrasonic signal travels through the coating and reflects back from each interface, giving a fast, accurate thickness reading without damaging the coating.
It pairs the removable cabled 200 C probe with the PosiTector Advanced body. You can measure the total thickness of a coating system or up to 3 individual layers, analyze them in graphics mode, and store and share results over WiFi and Bluetooth. It conforms to ASTM D6132 and ISO 2808 and is backed by a two-year warranty on body and probe.
See It in Action
Key Features
 | Made for concrete and non-metalsThe 200 C probe measures coatings from 50 to 3,800 µm (2 to 150 mils) over concrete, fiberglass and other non-metal substrates. That makes it ideal for floor coatings, linings and waterproofing membranes, with no adjustment needed for most applications. |
Up to 3 layers with graphics modeAdvanced models measure the total thickness of a coating system plus up to 3 individual layer thicknesses, down to 50 µm (2 mils) per layer depending on the material. The graphic display shows each layer interface as a peak, and screen capture saves the view for your reports. |  |
 | Advanced memory and wireless connectivityStore 250,000 readings in up to 1,000 batches, and rename batches or add notes with the touchscreen keyboard. WiFi synchronizes with PosiSoft.net and downloads updates, and Bluetooth 4.0 sends data to the PosiTector App or an optional portable printer. |
Built for the Field
Max Thick Mode
Max Thick Mode displays the deepest ultrasonic echo, so you don't need to adjust the Lo Range. It's ideal for ignoring unwanted surface echoes on rough or textured surfaces.
Simple, durable and accurate
It has a large 2.8" impact-resistant color touchscreen, on-gage help and an IP65 weatherproof, dustproof enclosure. A Long Form Certificate of Calibration traceable to NIST or PTB is included.
Integration and reporting
A BLE API and industry-standard protocols let the gage integrate with third-party software, drones, ROVs, PLCs and robotic devices. The PosiSoft suite of software handles viewing, reporting and archiving.
Specifications
| General | |
| Manufacturer | DeFelsko |
|---|---|
| Model | PosiTector 200 C3 (Advanced body with 200 C probe) |
| SKU | 200C3 |
| Instrument type | Ultrasonic coating thickness gage, non-metal substrates |
| Warranty | 2 years on gage body and probe |
| Shipping dimensions (estimated) | 356 × 305 × 152 mm (14.0 × 12.0 × 6.0 in) |
| Shipping weight (estimated) | 1.8 kg (4.0 lb) |
| 200 C Probe | |
| Probe style | Removable cabled ultrasonic probe |
| Typical applications | Coatings on concrete, fiberglass and other non-metal substrates |
| Measurement range | 50 to 3,800 µm (2 to 150 mils), for polymer-based coatings |
| Accuracy | ±(2 µm + 3% of reading); ±(0.1 mil + 3% of reading) |
| Minimum individual layer | 50 µm (2 mils), for multi-layer applications; depends on material |
| Certified thickness standard | STDP6 |
| Advanced Gage Body | |
| Display | 2.8" impact-resistant color touchscreen; auto rotating with Flip Lock |
| Layer measurement | Total thickness plus up to 3 individual layers; graphics mode with screen capture |
| Modes | Statistics; Max Thick Mode |
| Memory | 250,000 readings in up to 1,000 batches; touchscreen keyboard for batch names and notes |
| Connectivity | USB (data and continuous power), WiFi, Bluetooth 4.0; BLE API |
| Software | PosiSoft USB Drive, PosiSoft Desktop, PosiSoft.net, PosiTector App |
| Enclosure | IP65 weatherproof, dustproof and water-resistant; rubberized grip |
| Body size and weight | 127 × 66 × 25.4 mm (5.0 × 2.6 × 1.0 in); 137 g (4.9 oz) without batteries |
| Power | 3 × AAA batteries; USB power |
| Conforms to | ASTM D6132 and ISO 2808 |
What's in the Box
- PosiTector Advanced gage body
- 200 C ultrasonic cabled probe
- Couplant (ultrasonic gel)
- Plastic shims or block
- Protective rubber holster and wrist strap
- 3 AAA alkaline batteries
- Protective lens shield
- Hard case
- USB cable and PosiSoft software
- Instructions
- Long Form Certificate of Calibration
Standard DeFelsko package. Contents can vary by package, so contact us to confirm what ships with your order.
Complete your coating inspection kit
Add the STDP6 certified thickness standard and extra ultrasonic gel. For very thick, soft or attenuative coatings such as polyurea, see the 200 D probe. For thin polymer coatings on wood and plastic, see the 200 B.
Applications
| ✓ Coatings on concrete floors and walls | ✓ Waterproofing membranes |
| ✓ Fiberglass and composites | ✓ Masonry and construction materials |
| ✓ Multi-layer coating systems | ✓ Bridges, parking decks and infrastructure |
| ✓ Industrial flooring QA/QC | ✓ Coating inspection reporting |
Downloads
| ⬇ PosiTector 200 C3 Spec Sheet (PDF) |
About DeFelsko
DeFelsko Corporation is a leading U.S. manufacturer of coating thickness gages and inspection instruments, delivering simple, durable and accurate gages since 1965. Family owned and operated in Northern New York, its facility houses research, development, manufacturing, quality, sales, training and service under one roof.
