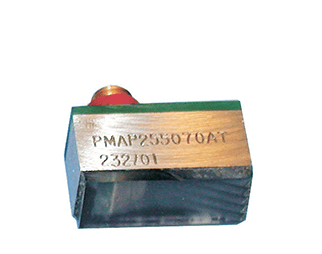

MINIATURE ANGLE BEAM POTTED ( MAP ), 0.375”, 2.25 MHz, 70°, DAKOTA NDT SKU: MAP372570
Choose Quantity
Dakota NDT — Miniature Angle Beam Potted Transducer MAP (0.375", 2.25 MHz, 70°)
Compact Angle Beam UT Probe for Weld Inspection & Flaw Detection SKU: MAP372570Overview
The Dakota NDT MAP372570 Miniature Angle Beam Potted Transducer is a compact ultrasonic testing probe designed for angle beam inspection applications. Operating at 2.25 MHz with a 0.375" element size and 70° inspection angle, this transducer provides strong penetration capability for weld inspection, flaw detection, and material evaluation.
The miniature potted design makes it practical for inspections where access is limited or where smaller probe geometry is required. Its 70° angle beam configuration is commonly used for detecting discontinuities such as cracks, lack of fusion, inclusions, and other internal flaws in welds and structural components.
Built for professional NDT workflows, this Dakota NDT MAP transducer is suitable for field, shop, fabrication, maintenance, and QA/QC applications requiring reliable ultrasonic angle beam performance.
What's Included
| Item | Details |
|---|---|
| UT Transducer | Miniature angle beam potted MAP transducer |
| Element Size | 0.375" |
| Frequency | 2.25 MHz |
| Angle | 70° |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.6 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | Miniature angle beam potted transducer |
| Series | MAP |
| Element Size | 0.375" |
| Frequency | 2.25 MHz |
| Angle | 70° |
| Application | Angle beam ultrasonic testing |
| Manufacturer | Dakota NDT |
| SKU | MAP372570 |
Performance Features
2.25 MHz Penetration Performance
Provides strong ultrasonic penetration for weld inspection and flaw detection applications.
70° Angle Beam Configuration
Supports shear wave inspection for detecting weld and structural discontinuities.
Miniature Potted Design
Compact probe format is useful for restricted access and smaller inspection areas.
Reliable Flaw Detection Support
Helps identify cracks, lack of fusion, inclusions, and other internal defects.
User-Friendly Design
- Compact miniature probe body for practical handling
- Potted design for durable field use
- Suitable for angle beam weld inspection workflows
- Easy integration with compatible UT equipment
- Designed for efficient ultrasonic testing applications
Built for Industrial Environments
- Durable construction for repeated inspection use
- Reliable performance in field and shop conditions
- Suitable for weld, fabrication, and structural inspections
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Ultrasonic flaw detectors
- Angle beam ultrasonic inspection setups
- Weld inspection procedures
- Shear wave UT workflows
- Compatible Dakota NDT cables and accessories
Ideal Applications
- Weld inspection and flaw detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Fabrication QA/QC
- Maintenance and repair inspections
- Oil & gas and industrial testing
- Restricted-access ultrasonic inspections
About Dakota NDT
Dakota NDT is a trusted manufacturer of ultrasonic testing equipment and accessories, providing reliable probes, gauges, wedges, and flaw detection solutions for professional NDT applications. Their products are widely used where accuracy, durability, and consistent inspection performance are essential.
