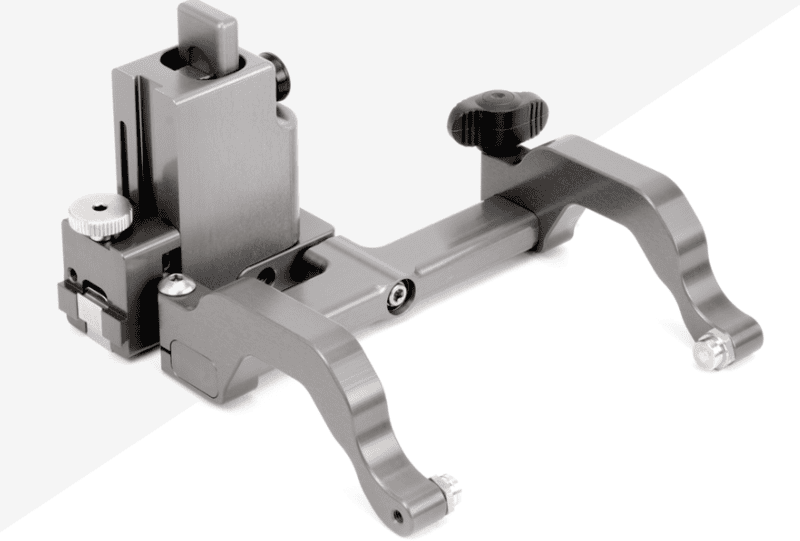

The Jireh Heavy Duty Vertical Probe Holder is a robust and versatile accessory engineered for securely mounting larger ultrasonic probes and specialized probe/wedge combinations. Featuring 8 mm (0.315 inch) pivot buttons for reliable attachment and a wide yoke to accommodate larger probes, this holder ensures stability and consistent probe-to-surface coupling, even when significant downforce is required during inspections.

The wide yoke design provides increased clearance, making it ideal for probes and wedges with a larger footprint, such as those used in extensive corrosion mapping or with dual-element configurations. The industry-standard 8 mm pivot buttons offer a secure and dependable attachment point for a broad range of compatible probes and wedges. This vertical probe holder is an essential component for various ultrasonic testing applications, ensuring optimal probe orientation and consistent data acquisition for reliable results.

Key Selling Points:

• Heavy-Duty Construction: Built to support larger and heavier probes, ensuring stability during demanding inspections.

• Wide Yoke Design: Provides increased clearance to accommodate probes and wedges with a larger footprint, enhancing versatility.

• Secure 8 mm Pivot Buttons: Offers a reliable and stable attachment point for a wide range of compatible probes and wedges.

• Ensures Consistent Probe Coupling: Facilitates stable and uniform contact between the probe and the inspection surface for accurate data.

• Vertical Orientation for Optimized Scanning: Designed for optimal probe positioning in various scanning applications.

Benefits:

• Supports a Wider Range of Probes: Enables the use of larger and specialized ultrasonic probes for diverse inspection needs.

• Provides Enhanced Stability: The robust design and wide yoke ensure stable probe movement and reliable data acquisition during scanning.

• Offers Versatile Probe Compatibility: The 8 mm pivot buttons allow for easy and secure attachment of many different probe and wedge types.

• Improves Ultrasonic Testing Reliability: Consistent probe coupling leads to more accurate and dependable inspection results.

• Contributes to Efficient Inspections: Secure and stable probe mounting facilitates smoother and more efficient scanning processes.

Approximate Dimensions (inches):

• Pivot Button Diameter: Approximately 0.315 inches (8 mm)

• Yoke Width (Internal Clearance): Approximately 4.8 inches (wide yoke version)

• Overall Height: Approximately 2.5 inches (This can vary slightly depending on the specific configuration).

• Overall Length: Approximately 3.5 inches (This can vary slightly depending on the specific configuration).

• Minimum Wedge Width Accommodation: Approximately 0.69 inches (17.4 mm)

• Maximum Wedge Width Accommodation: Approximately 3.69 inches (93.8 mm)

Applications:

This heavy-duty vertical probe holder is ideal for use with compatible scanners and other automated or semi-automated scanning systems in various ultrasonic testing applications, including:

• Large-area corrosion mapping using wider probes and wedges.

• Inspection with specialized probes and complex wedge configurations.

• Applications requiring significant and consistent downforce for optimal probe coupling.

• Weld inspection using larger phased array or conventional probes and dedicated wedges.

• General ultrasonic scanning where stable and reliable vertical probe mounting is essential.
