NM01FVA8L

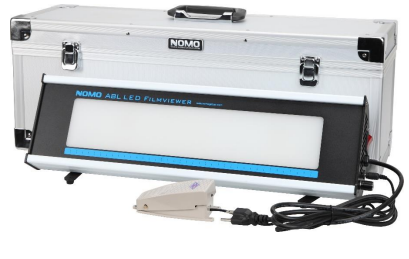

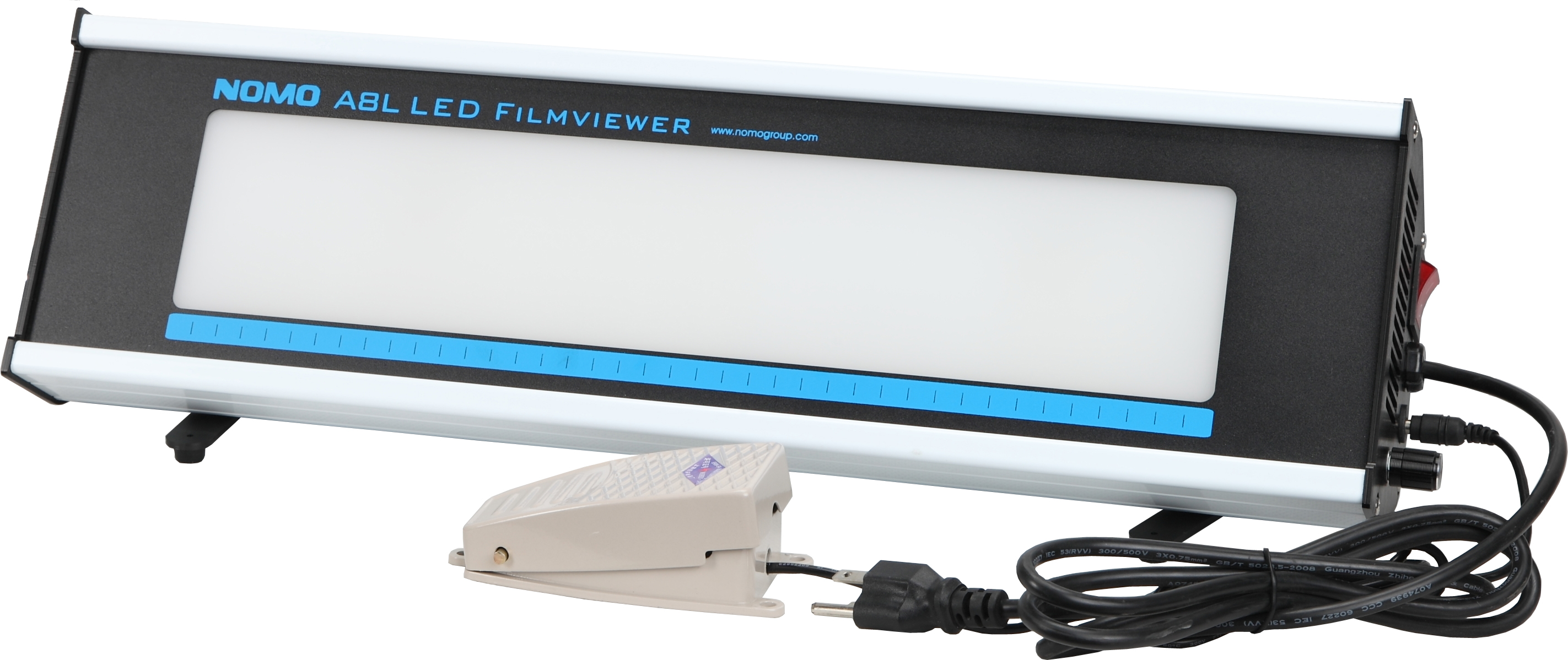

The Portable Industrial LED Film Viewer A8 (FV-2008 Plus) is a premium, environmentally friendly LED film viewer that offers remarkable luminance and innovative features for professional radiographic film inspection. This advanced model includes electronic light masking, allowing users to customize window sizes via six push-button options for adaptable and precise film viewing. Its durable aluminum frame and compact, low-heat design make it perfect for both field and laboratory use.

Key Features:

• Super High Luminance: Reaches up to 300,000 Cd/m², allowing it to read high-density films up to 4.3D.
• Adjustable Electronic Light Masking: Features 6 push-button adjustable window sizes for enhanced viewing versatility.
• Energy Efficient: Low power consumption and cooler LED technology minimize heat and reduce environmental impact.
• Extended Operation: Capable of up to 12 hours of continuous operation at maximum luminance.
• Overheating Indicator: Equipped with an overheating warning (power light turns red).
• Dimmer Control & Foot Switch: Intensity adjustable from 0% to 100%, with added foot switch for convenience.

Technical Specifications:

• Maximum Luminance: 110,000 Cd/m²
• Window Size: 400mm x 80mm
• Dimensions: 495mm x 150mm x 100mm
• Frame Material: Rugged aluminum frame
• Power Supply: Universal low voltage with constant power for prolonged LED life
