NM01PXCDTOF0204
Choose Quantity
A 2 MHz, 12 mm TOFD transducer with an M12 thread and Lemo 00 connector, made for accurate weld flaw detection and sizing.
| 2 MHzFrequency | 12 mmCrystal diameter | M12Wedge thread | Lemo 00Connector |

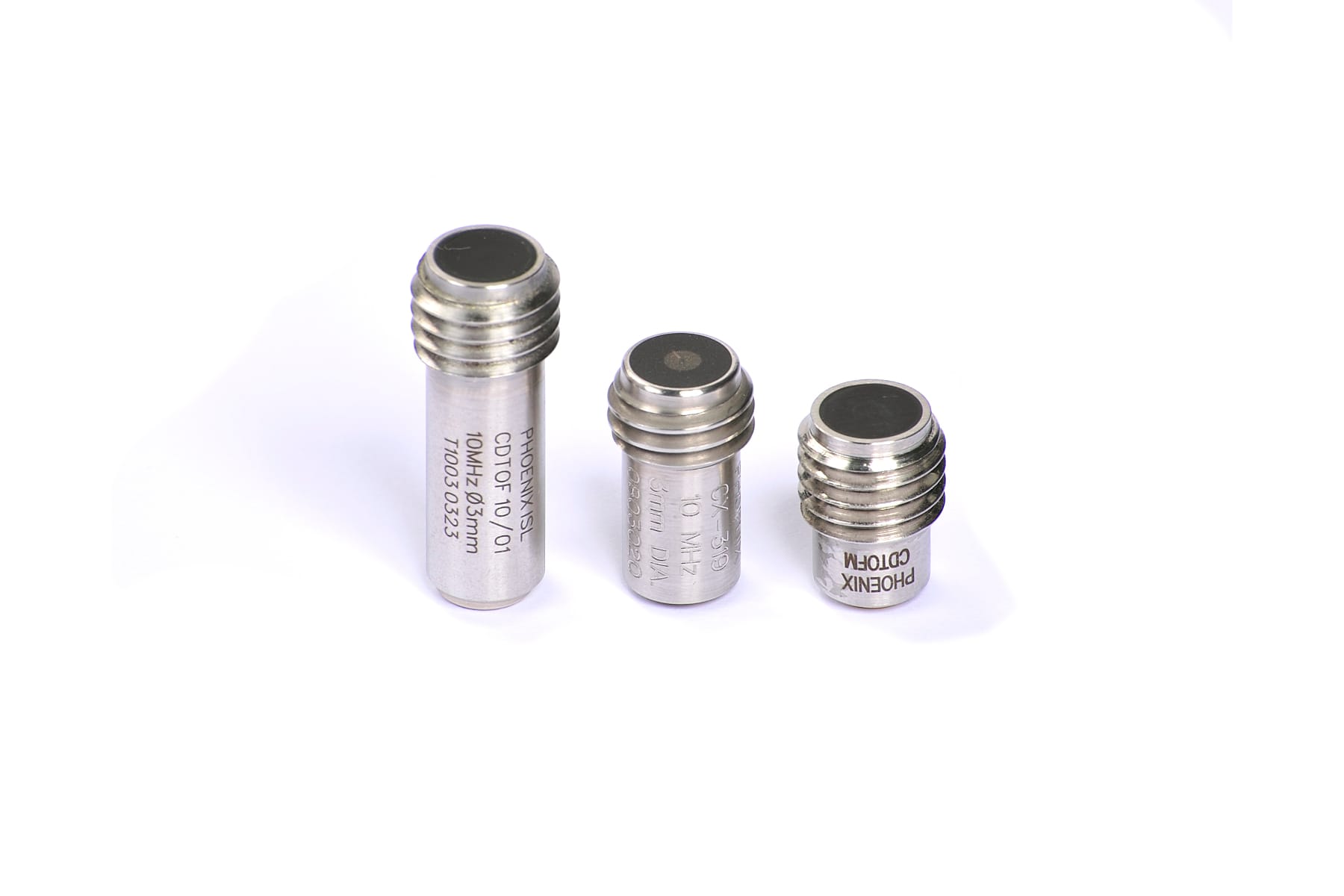

The Sonatest 2 MHz 12 mm TOFD probe is a de-mountable Time-of-Flight Diffraction transducer for weld inspection, flaw detection and defect sizing. Its low 2 MHz frequency and large 12 mm crystal give strong penetration for thicker sections, and its M12 thread screws into interchangeable TOFD wedges.
TOFD sizes flaws from the signals diffracted at their tips, which makes it highly accurate for crack height measurement and sensitive to defects in any orientation. The Lemo 00 connector links the probe to compatible TOFD-capable flaw detectors and scanner setups.
Key Features
 | Sizes flaws from tip diffractionMost ultrasonic methods rely on sound reflected back from a defect. TOFD detects the signals diffracted from a flaw's tips instead and measures their time of flight, giving accurate defect height with sensitivity to flaws in any orientation. |
Pitch-catch setup with a matched pairTwo probes sit on either side of the weld. One transmits and floods the area with sound, and the other receives. Signals arrive in order, with the lateral wave first, then any tip diffractions, then the back wall echoes. Order two of these probes for a complete pair. |  |
 | Fast, single-pass weld coverageTOFD is simple to set up, and its small data files let large areas be scanned quickly in a single pass. It also slots easily into multi-scan setups alongside phased array for a fuller inspection record. |
Probe Design
Deep penetration at 2 MHz
The low 2 MHz frequency carries sound further through thick welds and attenuative materials than higher-frequency probes.
Large 12 mm crystal
The 12 mm crystal puts more sound energy into the part than smaller elements, supporting strong, clear signals on thick-wall welds and demanding inspections.
Interchangeable M12 wedges
The de-mountable design screws into M12 TOFD wedges in plastic, stainless steel or brass at 45°, 60° or 70°. You can change the beam angle or replace a worn wedge without replacing the probe.
Lemo 00 connection
The standard Lemo 00 connector gives a secure link to compatible TOFD instruments and cable setups.
Rated for 0°C to 50°C
The probe operates from 0°C to 50°C (32°F to 122°F). High-temperature wedges up to 200°C (392°F) and contoured wedges are available on request.
Specifications
| General | |
| Manufacturer | Sonatest |
|---|---|
| Probe type | De-mountable TOFD transducer |
| Connector | Lemo 00 |
| Shipping dimensions (estimated) | 152 × 102 × 76 mm (6.0 × 4.0 × 3.0 in) |
| Shipping weight (estimated) | 0.27 kg (0.6 lb) |
| Acoustic | |
| Frequency | 2 MHz |
| Crystal diameter | 12 mm (0.472 in) |
| Mechanical | |
| Wedge thread | M12 |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Compatible Sonatest M12 Wedges | |
| Plastic | WTOFI12/45, WTOFI12/60, WTOFI12/70 |
| Plastic (HDPE series) | WTOF-HDPE-1245, WTOF-HDPE-1260, WTOF-HDPE-1270 |
| Stainless steel | WTOF-SSI12/45, WTOF-SSI12/60, WTOF-SSI12/70 |
| Brass | WTOF-BI12/45, WTOF-BI12/60, WTOF-BI12/70 |
| Brass, WREN small contact | WREN-12/45, WREN-12/60, WREN-12/70 |
| Options on request | High-temperature wedges up to 200°C (392°F), contoured wedges |
What's in the Box
- 1 × Sonatest 2 MHz 12 mm TOFD probe (M12, Lemo 00)
Contents can vary by package, so contact us to confirm what ships with your order.
Complete your TOFD setup
TOFD uses one transmitter and one receiver, so a full setup needs two of these probes, two M12 TOFD wedges at matching angles, and two Lemo 00 cables, plus a TOFD-capable instrument. Wedges and cables are not included.
Applications
This probe suits TOFD programs in fabrication, maintenance and in-service inspection, used with compatible TOFD instruments, Lemo 00 cables and scanners.
| ✓ TOFD weld inspection | ✓ Pressure vessel inspection |
| ✓ Flaw detection and sizing | ✓ Pipeline and piping inspection |
| ✓ Weld root erosion inspection | ✓ Fabrication QA/QC |
| ✓ HTHA inspection | ✓ Oil & gas and power generation |
