NM01T1013000

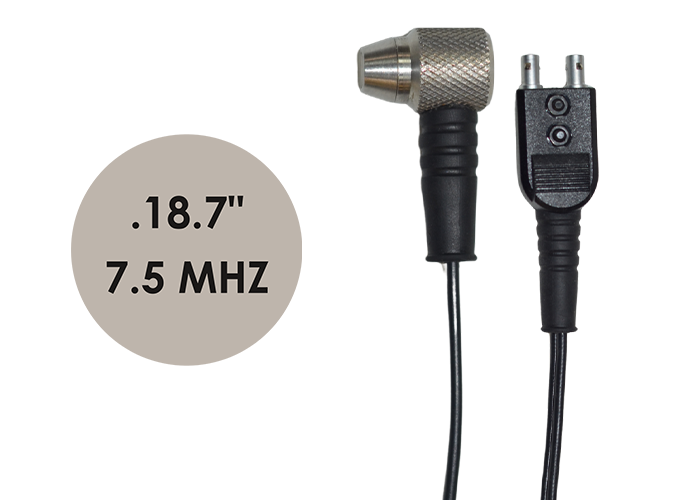

This Dakota NDT 7.5 MHz Dual Element Transducer is a compact and high-resolution probe designed for accurate ultrasonic thickness gauging. Featuring a small 3/16 inch (approximately 4.76 mm) diameter element and operating at a 7.5 MHz frequency, this transducer provides excellent sensitivity for detecting subtle variations in material thickness, particularly in thinner materials and for improved near-surface resolution.

The dual element design incorporates two separate crystals within the housing, one for transmitting the ultrasonic pulse and the other for receiving the reflected echo. This configuration enhances signal measuring speeds and improves near-surface focusing, leading to more accurate readings, especially on materials like steels, aluminum, glass, and thin plastics.

The transducer is potted, meaning the internal components are encased in a durable material, offering excellent protection against environmental factors and ensuring long-lasting reliability in demanding industrial environments. The side entry cable design provides flexibility in tight measurement areas and helps to minimize interference.

Key Selling Points:

• High 7.5 MHz Frequency: Offers excellent resolution for accurate measurement of thin materials and detection of small variations.

• Compact 3/16" Diameter: Provides a focused ultrasonic beam, enhancing sensitivity for precise measurements in confined areas.

• Dual Element Design: Improves near-surface resolution and signal measuring speeds for reliable readings.

• Durable Potted Construction: Encased for superior protection against harsh environments, ensuring longevity.

• Convenient Side Entry Cable: Offers flexibility and minimizes interference in tight spaces.

• Optimized for Thickness Gauging: Specifically designed for accurate thickness measurements on various materials.

Benefits:

• Achieve highly accurate thickness measurements, especially on thinner materials.

• Obtain improved near-surface resolution for critical applications.

• Ensure reliable performance in demanding industrial environments due to the durable potted construction.

• Easily access measurement points in tight or restricted areas with the side entry cable.

• Compatible with a range of Dakota NDT ultrasonic thickness gauges for seamless integration.
