NM01MAP255070

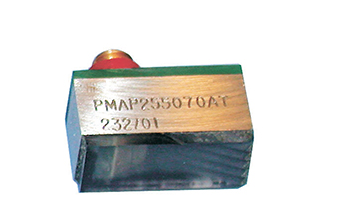

MINIATURE ANGLE BEAM POTTED ( MAP ), 5 MHz, 0.250" Element Size, Microdot Side Entry Connector, Dakota NDT
Reach the Most Challenging Angles with Precision: Dakota NDT Miniature 70° Angle Beam Transducer
For detailed ultrasonic inspections in extremely confined spaces and around the most complex geometries, this Dakota NDT Miniature Angle Beam Potted (MAP) transducer offers an unparalleled solution. Featuring a small 0.250" element size and a focused 5 MHz frequency, this 70-degree angle beam probe is specifically engineered to deliver high-resolution flaw detection in areas with virtually no accessibility for standard transducers.
The precisely angled 70-degree refracted beam is optimally suited for detecting and characterizing flaws with specific orientations often found in intricate weld configurations and the most challenging component designs. The Microdot side entry connector provides maximum flexibility for cable routing, ensuring effortless integration into even the most space-constrained inspection setups.
Built with a durable potted construction, this miniature transducer offers robust protection against harsh environments, guaranteeing reliable and consistent performance in demanding industrial applications. Its small element size allows for a highly focused sound beam, enhancing sensitivity for detecting minute discontinuities and accurately evaluating flaws using the 70-degree angle beam technique in previously completely inaccessible areas.
Key Features:
Ultra-Compact 0.250" Element Size: Provides the ultimate access to extremely confined areas and allows for a highly focused sound beam.
Precise 70° Angle Beam: Optimized for detecting and characterizing flaws with specific orientations common in welds and the most intricate designs.
High-Resolution 5 MHz Frequency: Delivers excellent sensitivity for detailed angled inspections in the tightest of spaces.
Convenient Microdot Side Entry Connector: Offers maximum flexibility in cable routing for effortless integration in the most restricted areas.
Durable Potted Construction: Enhances robustness and protects internal components from demanding environments.
Ideal for Utmost Restricted Access: Perfect for inspecting welds and components with the most complex and confined geometries imaginable.
Applications:
Highly detailed weld inspection in the most extremely restricted access areas.
Critical flaw detection near the tightest corners and complex structural details.
Inspection of small diameter tubes and pipes with virtually no access room.
General angle beam inspections where an exceptionally small footprint and highly angled beam are absolutely essential.
Conquer the most challenging inspection environments. Invest in the Dakota NDT Miniature Angle Beam Potted (MAP) 5 MHz, 0.250" Element Size, 70 degree Transducer today.
