NM01IQI462FE1

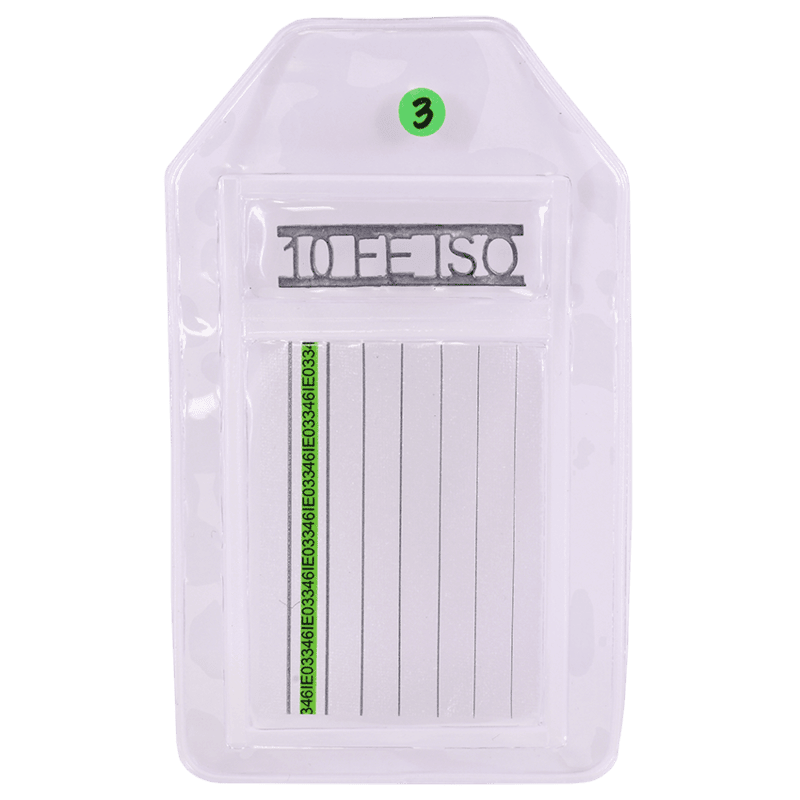

The IQI Wire Type EN-462-1 & DIN 54 109, 1 FE EN, 1 ISO 7 industrial quality indicator (IQI) is designed according to EN 462-1 and ISO 19232-1 standards, replacing the DIN 54 109 standard for radiographic testing. This IQI is constructed based on a series of precise wire diameters and consists of 7 wires per range, making it a highly effective tool for ensuring radiographic image quality. Each IQI is equipped with a lead symbol that specifies the largest wire diameter, material type, and EN specification.

Available in Steel, Aluminum, Copper, and Titanium, the IQIs come in multiple size designations (1 EN, 6 EN, 10 EN, and 13 EN), accommodating varying thickness ranges. Each size represents different wire diameters and identity numbers for detailed flaw detection and imaging quality across diverse materials and applications.

Material and Sizes:

• Materials: Steel, Aluminum, Copper, Titanium
• Available Sizes: 1 EN, 6 EN, 10 EN, 13 EN

Specifications:

1. 1 EN: Suitable for thicknesses from 1.6 to 6.0 inches (40 to 160 mm)
2. 6 EN: Suitable for thicknesses from 0.5 to 2.0 inches (12.5 to 50 mm)
3. 10 EN: Suitable for thicknesses from 0.20 to 0.75 inches (5.0 to 20 mm)
4. 13 EN: Suitable for thicknesses from 0.10 to 0.40 inches (2.5 to 10 mm)

Wire Diameters and Identifications:

• 1 EN Range: Wires 1-7, diameters from 3.20 mm to 0.80 mm
• 6 EN Range: Wires 6-12, diameters from 1.00 mm to 0.25 mm
• 10 EN Range: Wires 10-16, diameters from 0.40 mm to 0.10 mm
• 13 EN Range: Wires 13-19, diameters from 0.20 mm to 0.05 mm
