NM01TSD210

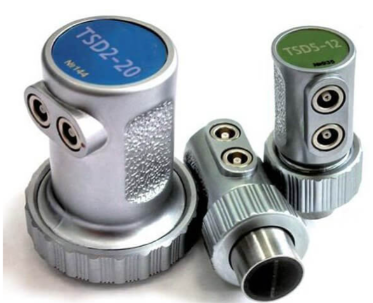

The OKO-NDT Straight Beam Probe TSD is a high-performance, double-element ultrasonic transducer designed for precise thickness measurement and flaw detection in a variety of materials. Engineered for non-destructive testing (NDT) applications, this probe offers enhanced sensitivity and reduced near-surface dead zones, ensuring accurate and reliable inspection results.

The TSD probe utilizes a double-element design, featuring separate transmitting and receiving elements. This configuration significantly improves signal-to-noise ratio and minimizes the impact of surface conditions, resulting in more accurate and consistent measurements. Operating at a frequency of 2.0 MHz, this probe provides a balanced combination of penetration and resolution, making it suitable for a wide range of materials and inspection depths.

The 10mm diameter active elements provide a focused and consistent ultrasonic beam, ensuring precise data acquisition. The industry-standard Lemo 00 connector ensures a secure and reliable connection to ultrasonic testing equipment, minimizing signal loss and maintaining signal integrity.

Manufactured by OKO-NDT, a reputable provider of NDT equipment, the Straight Beam Probe TSD is built to exacting standards, ensuring durability and long-term performance in demanding industrial environments.

Key Features and Benefits:

• Double Element (TSD) Design: Enhances sensitivity and reduces near-surface dead zones.

• 2.0 MHz Frequency: Provides a balance of penetration and resolution for versatile applications.

• 10mm Diameter Active Elements: Offers a focused and consistent ultrasonic beam.

• Lemo 00 Connector: Ensures a secure and reliable connection.

• OKO-NDT Quality: Manufactured by a trusted provider of NDT equipment.

Applications:

• Thickness Measurement: Accurate measurement of material thickness.

• Flaw Detection: Detecting flaws perpendicular to the test surface in various materials.

• Corrosion Monitoring: Detecting and measuring corrosion in materials.

• Material Inspection: Inspecting materials for thickness variations and defects.

• General NDT: Various applications requiring straight beam ultrasonic testing.

Technical Details:

• Frequency: 2.0 Mhz

• Element Size: ∅11/2, ∅.375

• Type of Case: Plated Brass

• Connector Type: Lemo00

• Conector Position: Side
