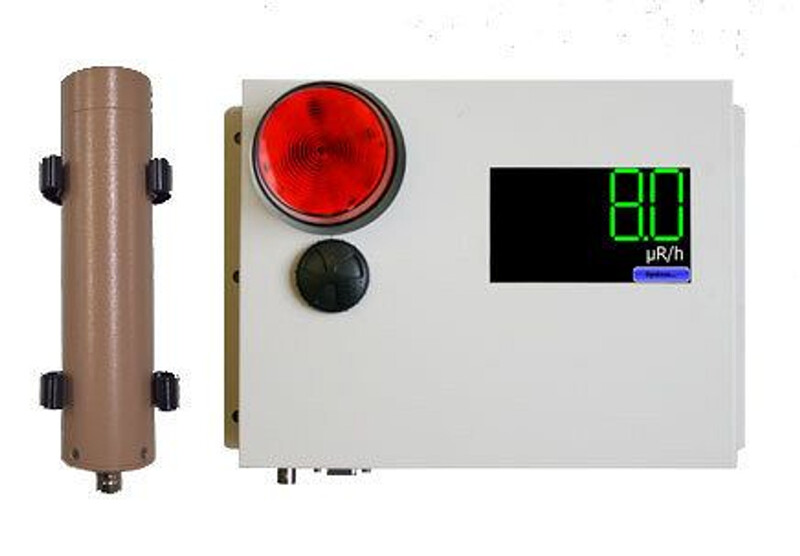

The Radiation Alert® Area Monitor is one of the most user friendly, all inclusive, state of the art radiation area monitors available. The easy to use interface is an intelligent resistive touch screen display featuring a large five digit LED readout.
The AM-2X2 comes with an external Sodium Iodide Scintillation Detector. Cesium Iodide probes available. Rugged, wall mount enclosure options are available for high traffic area. Monitor every Radiation Alert® Area Monitor on your network with the free software. Includes user selectable warning indicators for low and high radiation alarm levels,and detector failure. Setup email and text alerts to receive alarms while on the go. All the settings are stored internally, even when power is disconnected. All units come with a Certificate of Conformance. NIST Source calibrations available upon request.
Applications & Uses: Room monitoring for Hospitals, X-Ray machines, Accelerators, Laboratories, etc. Portal monitoring, such as doors and walkways, Source monitoring, Alarms in the presence of radiation or the absence of sources
Technical Details:
• Detector: 2X2 Nal(Tl) Scintillation ProbeCustom Probe Options Available. Tell us about your application and we can recommend the best probe options for your needs.
• Energy Range: 30 KeV – 2 MeV
• Sensitivity: Approximately 9000 CPS/mR/hr (137 Cs)
• Operating Range:0.01 to 2 mR/hr (0.1 to 20 µSv/hr)
• Response: Varies automatically from 20 seconds to 2 seconds
• Touch Screen Display: 4.3 inch TFT 480×272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 3 cm (1.5 in.) character height. 65K true colors capable of displaying full color images, animations, icons.
• Base Units: Can display in µR/hr, mR/hr, µSv/hr, mSv/hr, CPM, KCPM, CPS, KCPS,
• Base unit Settings: Settings for Base Units, Alarms and Calibration Information can be accessed through the Touch Screen Display or through the software
• Indicators: Ultra-Bright Strobe and Audible Alarm can trigger up to three relays with DB-9 serial connection. USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote).
• Ethernet: 10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)
• High Voltage: User adjustable from 200 to 1200 volts
