NM01OW5070

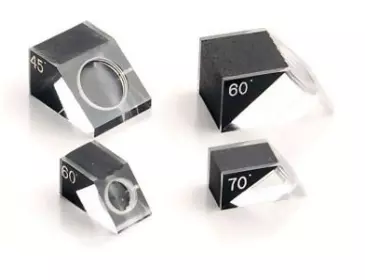

The Quick Change 0.50" 70° Wedge is a high-efficiency accessory designed for rapid and reliable ultrasonic angle beam inspections. Featuring a convenient quick change interface, this wedge allows for swift, tool-free attachment and detachment from compatible transducers, maximizing inspection speed and versatility.

With a 0.50-inch contact length, this wedge provides stable coupling with the test surface. The precisely engineered 70-degree refracted angle (in steel) is ideal for detecting a wide range of flaw orientations, particularly those oriented near-vertical, making it a valuable tool for weld inspection and other critical applications. Its quick change design streamlines workflow, allowing for fast transitions between different inspection angles or probe configurations.

Key Features:

• Quick Change Design: Enables rapid, tool-free attachment and removal.

• 70° Refracted Angle (in Steel): Optimal for detecting various flaw orientations, especially near-vertical defects.

• 0.50" Contact Length: Provides stable coupling with the test surface.

• Durable Construction: Built to withstand demanding inspection environments.

• Enhances Inspection Efficiency: Saves time when multiple angle inspections are required.

Benefits:

• Increased Productivity: Quickly switch between different angle beam probes or configurations.

• Effective Detection of Near-Vertical Flaws: The 70-degree angle is well-suited for specific defect orientations.

• Stable and Reliable Coupling: The 0.50" contact length ensures good contact with the test material.

• Durable for Industrial Use: Designed to withstand the rigors of NDT inspections.

Applications:

• Weld inspection, particularly for detecting lack of fusion and other vertically oriented defects.

• Detection of cracks and other discontinuities in various materials from an angled approach.

• Inspection of pipes, tubes, and other components with geometric constraints.

• General-purpose angled beam ultrasonic testing where efficiency is key.
