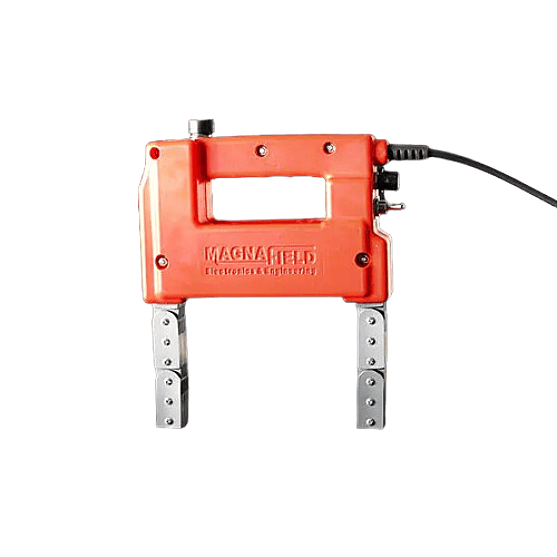

Magnafield — AC/HWDC Magnetic Yoke (220V, 50/60 Hz)
Dual Mode MPI Yoke with High Lifting Capacity & Adjustable Legs SKU: MFADY110Overview
The Magnafield AC/HWDC Magnetic Yoke is a versatile inspection tool designed for magnetic particle inspection (MPI) of ferromagnetic materials. Featuring dual magnetization modes (AC and Half-Wave DC), this yoke enables detection of both surface and near-surface discontinuities, providing greater inspection flexibility.
Operating at 220V with 50/60 Hz compatibility, the unit delivers a lifting capacity of up to 22.5 kg in HWDC mode and 4.5 kg in AC mode, ensuring strong and reliable magnetization performance. The articulated legs allow adjustable spacing up to 12" (300 mm), making it adaptable to a wide range of inspection geometries.
Lightweight and ergonomically designed, this yoke weighs less than 3 kg, making it ideal for field use while maintaining durability and performance in demanding industrial environments.
What's Included
| Item | Details |
|---|---|
| Magnetic Yoke | AC/HWDC dual mode inspection yoke |
| Power Cable | Integrated 220V power connection |
| Carrying Case | Protective storage and transport case (if applicable) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 12.0 in |
| Width | 8.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 12.0 × 8.0 × 6.0 in |
| Weight | 6.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Magnetic yoke |
| Magnetization Modes | AC / HWDC |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Lifting Capacity (HWDC) | 22.5 kg |
| Lifting Capacity (AC) | 4.5 kg |
| Leg Adjustment | Up to 12" (300 mm) |
| Weight | < 3 kg |
| Duty Cycle | 2 minutes |
| Application | Magnetic particle inspection (MPI) |
Performance Features
Dual Magnetization Modes (AC/HWDC)
Allows detection of both surface (AC) and near-surface (HWDC) defects.
High Lifting Capacity
Up to 22.5 kg in HWDC mode for strong magnetization performance.
Adjustable Articulated Legs
Interpole legs adjust up to 12" for flexible inspection configurations.
Reliable Detection Capability
Ensures accurate identification of cracks, seams, and discontinuities.
User-Friendly Design
- Lightweight (<3 kg) for easy handling
- Ergonomic grip for extended use
- Adjustable legs for versatile applications
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for field use
- Reliable performance in demanding conditions
- Suitable for continuous inspection tasks
- Designed for professional NDT applications
Compatibility
Compatible with:
- Dry and wet magnetic particles
- MPI inspection procedures
- Ferromagnetic materials
- Industrial NDT workflows
Ideal Applications
- Weld inspection and crack detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Oil & gas and construction industries
- Fabrication and maintenance
- Surface and near-surface defect detection
About Magnafield
Magnafield provides high-quality magnetic particle inspection equipment designed for reliability and performance. Their products are widely used in industrial NDT applications where accurate defect detection and operational flexibility are essential.
