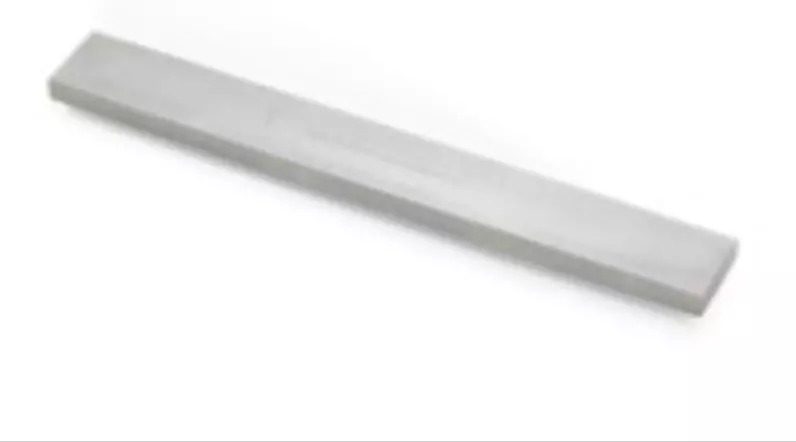

Magnetic Particle Test Bar — MX3508
MPI Calibration & Verification Bar with Surface and Subsurface DefectsOverview
The MX3508 Magnetic Particle Test Bar is a precision calibration tool designed to verify the performance of magnetic particle inspection (MPI) systems. Engineered with both coarse and fine defects, this test bar enables inspectors to evaluate detection sensitivity across a range of discontinuity types.
Featuring surface and subsurface defects oriented in multiple directions, the MX3508 provides a comprehensive reference for validating magnetic field strength and inspection effectiveness. This ensures proper system setup and reliable defect detection during MPI procedures.
Widely used in industries such as oil & gas, aerospace, and manufacturing, this test bar is essential for maintaining inspection accuracy and compliance with quality standards.
What's Included
| Item | Details |
|---|---|
| Test Bar | MX3508 MPI test bar with artificial defects |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 8.0 in |
| Width | 2.0 in |
| Height | 2.0 in |
| Dimensions (L × W × H) | 8.0 × 2.0 × 2.0 in |
| Weight | 2.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Magnetic particle test bar |
| Model | MX3508 |
| Defect Types | Coarse and fine |
| Defect Location | Surface and subsurface |
| Orientation | Multi-directional |
| Application | MPI system verification |
Performance Features
Dual Defect Simulation
Includes both coarse and fine defects for comprehensive sensitivity checks.
Surface & Subsurface Indications
Validates detection capability at different depths.
Multi-Directional Defects
Ensures proper magnetization and inspection coverage in all orientations.
Reliable System Verification
Supports accurate setup and performance validation of MPI equipment.
User-Friendly Design
- Easy to use for quick system checks
- Clearly defined defect areas
- Compact and portable
- Suitable for field and lab applications
Built for Industrial Environments
- Durable construction for repeated use
- Reliable performance in inspection conditions
- Suitable for field and workshop use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Magnetic yokes (AC/DC/HWDC)
- Wet and dry MPI methods
- Magnetic particle inspection systems
- Industrial NDT procedures
Ideal Applications
- MPI system verification and calibration
- Sensitivity and performance checks
- Training and demonstration
- Oil & gas and pipeline inspection
- Aerospace and manufacturing QA/QC
- General magnetic particle testing
About the Product
The MX3508 test bar is designed to provide reliable and repeatable verification of magnetic particle inspection systems, ensuring accurate defect detection and consistent inspection quality.
