NM01ADLMS52PRO

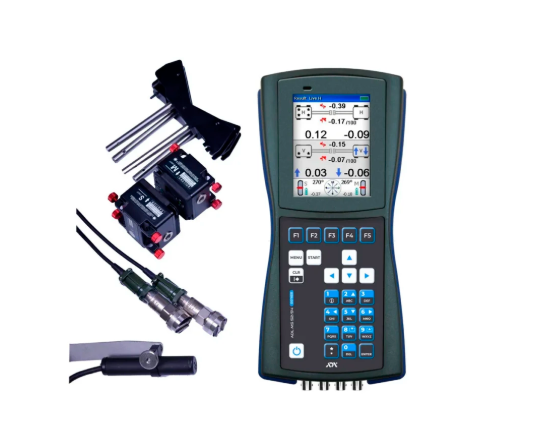

The vibration analyzer is a compact instrument with many functions for expert diagnosis of the vibration state and the causes of non-stationary equipment operation. Model ADL MS54Pro include the possibility of precise, simple and fast laser shaft alignment.
Vibration analyzer designed to measure general vibration parameters, analyze the vibration spectrum of rotating equipment, quickly evaluate according to ISO 10816, monitor the status of measurements and collect data for subsequent diagnostics and adjustment of various industrial equipment.
Features:
- 2 channels for measuring and evaluating the vibration spectrum
- Balancing – up to 8 correction planes
- Classic reliable piezo accelerometers
- Wide frequency range for high quality and professional diagnostics
- Easy and precise shaft alignment
- Distance between sensors on alignment equipment – up to 10m
- Shaft diameter range 20 to 250 mm diameter with supplied chains
- Ultralight wireless laser sensors with built-in Bluetooth for alignment.
- Wide range of features including horizontal and vertical machine alignment, gasket simulator and thermal expansion calculation
- Preparation of reports in PDF format and other
- Large capacity flash drive for storing measurements and reports
- USB interface for PC connection
- Energy-intensive battery
- Measurement archiving and reporting software
- Intuitive interface
- Bright and color display.
Balancing
Balancing – up to 8 correction planes (16 measurement points): allows for the elimination of excessive vibration by conducting balancing. Thanks to the capability of balancing across up to 8 correction planes using 16 measurement points, the vibration analyzer enables not only the detection of imbalances but also their effective correction in various planes.
Main field
The main field of application of the devices is the operational control of the mechanical condition during operation, diagnostics, maintenance and repair of equipment: bearings, gears, turbines, generators, fans, pumps, rotors, distribution plants, ball mills, rolling mills, gearboxes, conveyors, engines, blowers and many other equipment. Vibration analyzers of the MS series are applicable for monitoring both entire structures and individual elements.
The vibration analyzers of the MS series are used in metallurgy, mechanical engineering, petrochemical, light and defense industries, thermal and nuclear power engineering, maintenance of agricultural equipment, housing and communal services and transport.
The presence of a service center based on the Adelix company in Turkey, Ankara, provides the possibility of warranty and post-warranty service throughout the entire period of operation.
Delivery set includes:
- Measuring block;
- Accelerometer, cable 1.5 m, magnet for mounting on a curved surface – 2 pcs;
- Optical sensor, magnetic stand;
- USB charger;
- USB cable;
- Flash drive with software and user manual;
- Case for transportation and storage
Additional options:
- Sensors S, M with cables or wireless;
- Universal V-brackets with chains;
- Stands 100mm, 150mm;
- Tape measure 3m.
| Parameter | Meaning |
| Channel inputs | 2 |
| Frequency range | 1… 25000 Hz |
| Vibration measurement range: -vibration acceleration -vibration speed – vibration displacement | 200 m/s2 200 mm/s 2000 uM |
| Balancing | up to 8 correction planes, 16 measurement points |
| Speed measuring range | 10…200000 rpm |
| FFT Spectrum Resolution | 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 102400 lines |
| Accuracy | Before 5% |
| Memory | 4 GB |
| PC interface | USB |
| Display | Color VGA |
| Battery | Li-Po rechargeable, up to 8 hours of continuous use |
| Dimensions | 220 x 102 x 40 mm |
| Measuring block weight | 470 g |
