NM0110L320.31X7A10P2.5MIPEX

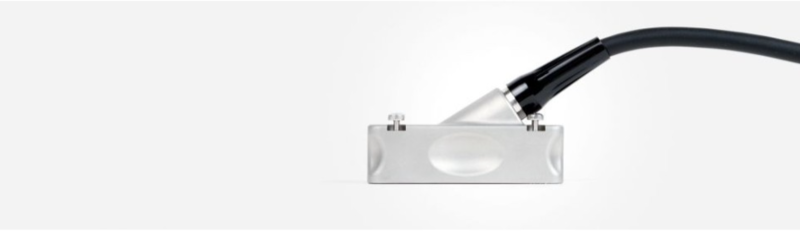

The ULSO Standard Phased Array Probe is a high-precision, 10 MHz linear array transducer meticulously engineered for advanced non-destructive testing (NDT) applications demanding exceptional resolution and detailed flaw characterization. This probe is designed to deliver superior performance in demanding industrial environments, particularly in critical inspections where accuracy is paramount.

Featuring a 32-element linear array configuration with a fine 0.31 mm pitch, this probe enables highly focused ultrasonic beams, providing unparalleled resolution for detecting and sizing even the smallest defects. The 7 mm elevation of the elements optimizes the beam profile for enhanced sensitivity and performance in the non-scanning plane.

The A10 case type provides a robust and standardized housing, ensuring durability and compatibility with various phased array systems. The impedance matching to Rexolite material optimizes signal transmission, minimizing losses and enhancing overall performance. The PVC sheathing on the 2.5-meter cable offers excellent protection against wear and tear, ensuring long-term reliability.

The IPEX connector provides a compact and secure connection to the phased array instrument, making it ideal for applications where space is limited. This probe is manufactured by ULSO, a reputable provider of high-quality NDT solutions, ensuring consistent performance and adherence to stringent quality standards.

Key Features and Benefits:

• 10 MHz Linear Array: High-resolution imaging for detailed flaw characterization.

• 32 Elements, 0.31 mm Pitch: Enables highly focused ultrasonic beams and exceptional resolution.

• 7 mm Elevation: Optimizes beam profile for enhanced sensitivity.

• A10 Case Type: Robust and standardized housing for durability.

• Impedance Matching to Rexolite: Optimizes signal transmission and minimizes losses.

• PVC Sheathing, 2.5 m Cable Length: Provides excellent protection and flexibility.

• IPEX Connector: Compact and secure connection for space-limited applications.

• ULSO Quality: Manufactured by a reputable provider of NDT solutions.

Applications:

• High-Resolution PAUT Inspections: Applications requiring very detailed flaw detection and characterization.

• Weld Inspection (PAUT): Especially for thin materials or critical welds.

• Composite Material Inspection (PAUT): Detecting delamination and other defects.

• Aerospace Inspection (PAUT): Inspection of critical components.

• Thin Material Inspection: Because of the high frequency, and small pitch, thin materials can be inspected.
