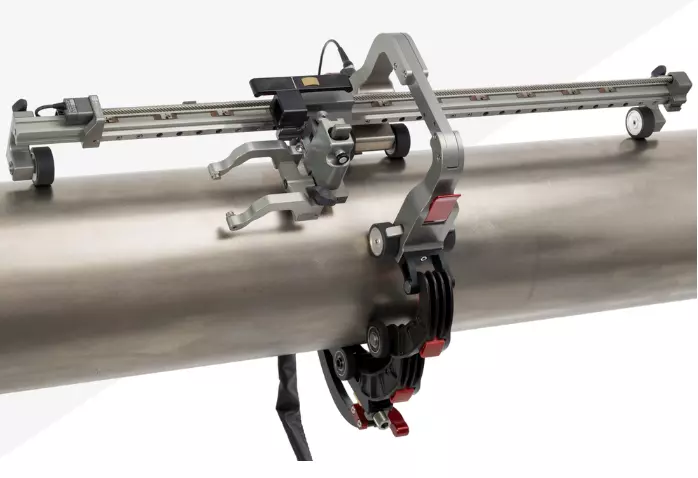

The ROTIX - Corrosion Chain Scanner offers versatile inspection capability, allowing you to assess non-ferrous and ferrous materials for corrosion efficiently. One of the standout features of the ROTIX is its built-in positional and index encoders. These encoders enable precise measurement during inspections, ensuring that you obtain accurate and reliable results. Furthermore, the scanner's user-friendly interface makes operating easy, even in challenging inspection environments. Additionally, the versatile QuickLink chain system allows for easy adaptation to pipe sizes ranging from 10.2 to 96.5 cm (4 to 38 in), making it suitable for various applications.
Choose the ROTIX - Corrosion Chain Scanner and experience the benefits of a top-quality tool to enhance your corrosion inspection processes.
GENERAL
Pipe Range, Circumferential: 10.2 to 96.5 cm (4 to 38 in)
Stroke Length: 61 cm (24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Index Resolution: 40.3 counts/mm (1023.9 counts/inch)
Probe Holding Capacity: One heavy duty probe holder
Encoder Cable Length: 7.5 m (24.6 ft)1
Inspection Surface: Ferrous and non-ferrous
Pipe Range, Circumferential: 10.2 to 96.5 cm (4 to 38 in)
Stroke Length: 61 cm (24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Index Resolution: 40.3 counts/mm (1023.9 counts/inch)
Probe Holding Capacity: One heavy duty probe holder
Encoder Cable Length: 7.5 m (24.6 ft)1
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE
Radial Scanner Clearance: 13.1 cm (5.2 in)
Radial Scanner Clearance: 13.1 cm (5.2 in)
SIZE & WEIGHT
Scanner Height: 15.1 cm (5.9 in)
Scanner Width: 75 cm (29.5 in)
Scanner Depth: 27.8 cm (10.9 in)
Scanner Weight: 2.8 kg (6.2 lb)2
Scanner Height: 15.1 cm (5.9 in)
Scanner Width: 75 cm (29.5 in)
Scanner Depth: 27.8 cm (10.9 in)
Scanner Weight: 2.8 kg (6.2 lb)2
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS
Standard Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)
Wide Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)
Standard Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)
Wide Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)
