NM01MCCAUT008

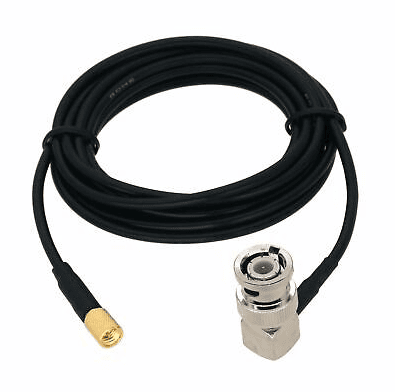

This is a high-quality Ultrasonic Testing (UT) Cable designed to connect ultrasonic transducers with a Microdot (typically 10-32 UNF) connector to ultrasonic testing instruments equipped with a BNC connector. This specific cable utilizes RG174 coaxial cable, a flexible and commonly used cable type for signal transmission in UT applications. The cable has a length of 2 meters (approximately 6.56 feet), providing sufficient reach for various inspection setups. The MC designation in the product name likely refers to the manufacturer or a specific model within their cable line.
This cable ensures reliable signal transmission between the transducer and the UT instrument, which is crucial for accurate and dependable ultrasonic inspections. The BNC connector offers a secure and quick connect/disconnect interface for the instrument, while the Microdot connector is a standard for many small ultrasonic transducers, particularly single element probes.
Key Selling Points:
BNC to Microdot Connection: Specifically designed to connect instruments with BNC connectors to transducers with Microdot connectors.
Flexible RG174 Cable: Allows for easy maneuverability during inspections.
Optimal Length (2 Meters): Provides sufficient reach for most testing applications.
Reliable Signal Transmission: Ensures accurate data transfer for dependable results.
Durable Construction: Built to withstand the demands of NDT environments.
Benefits:
Ensures Proper Connection: Guarantees compatibility between the transducer and the UT instrument.
Facilitates Easy Handling: The flexible cable allows for comfortable use during inspections.
Provides Adequate Reach: The 2-meter length offers versatility in various testing scenarios.
Maintains Signal Integrity: RG174 cable ensures reliable data transfer.
Long-Lasting Performance: Durable construction withstands typical NDT usage.
Applications:
This UT cable is commonly used to connect:
Single element contact transducers with Microdot connectors to ultrasonic flaw detectors or thickness gauges with BNC connectors.
Angle beam transducers with Microdot connectors to UT instruments with BNC connectors.
Other specialized ultrasonic transducers with Microdot connectors to compatible BNC-equipped instruments.
The UT Cable BNC-Microdot, RG174, 2M, MC is a vital accessory for ultrasonic testing, providing a reliable and convenient connection between your transducer and UT instrument, ensuring accurate and efficient inspections.
