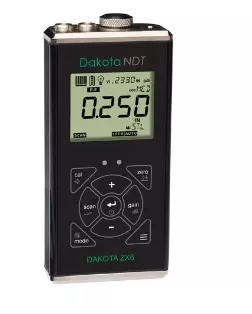

The Dakota ZX6 Thickness Gauge is a rugged and highly accurate handheld ultrasonic thickness gauge designed for professionals who demand reliable material thickness measurements and flaw detection. A standout feature of the ZX6 is its advanced multi-echo mode, enabling precise measurement of metal thickness through paint and coatings up to 0.075 inches (1.905 mm) without the time and expense of coating removal. This ensures you get the true base metal thickness every time.

Beyond its exceptional thru-paint capability, the ZX6 also operates in a standard pulse-echo mode for conventional thickness measurements and the detection of subsurface anomalies like pits and flaws across a broad range of materials. Its intuitive interface allows for both automatic and manual probe zeroing, ensuring maximum measurement accuracy.

The ZX6 offers a 5-position adjustable gain, optimizing signal reception even in challenging or sound-attenuating materials. The high-speed scan mode captures the minimum thickness value while scanning an area at an impressive rate of up to 100 readings per second, ideal for quick assessments. User-defined high and low alarm limits with audible and visual alerts ensure immediate notification of out-of-tolerance readings. The differential mode further enhances analysis by displaying the variance from a nominal thickness value.

Versatility is key with the ZX6, offering compatibility with a wide selection of transducers ranging from 1 to 10 MHz. The innovative VX Velocity Mode allows for measurements in terms of velocity, useful for material characterization like nodularity testing. The clear, backlit 4.5 digit LCD with large numerals ensures easy readability in any lighting condition. Measurements can be displayed in inches, millimeters, or velocity units.

For comprehensive data management, the ZX-6DL model includes onboard data logging with convenient USB connectivity for exporting data in CSV format. Built to withstand demanding environments, the ZX6 features a durable extruded aluminum body with sealed end caps, boasting an IP67 rating for exceptional water and dust resistance. Its long battery life, typically providing 200 hours of operation on alkaline batteries, ensures extended use in the field. Backed by Dakota Ultrasonics' 5-year limited warranty and proudly Made in the USA, the ZX6 is a reliable investment.

Key Selling Points:

• Measure Through Coatings: Accurate base metal readings without removing paint (Multi-Echo).

• Versatile Dual Mode Operation: Pulse-Echo for standard measurements and flaw detection.

• High-Speed Scanning: Quickly identify minimum thickness values across an area.

• User-Friendly Alarms: Immediate notification of out-of-tolerance readings.

• Wide Transducer Compatibility: Flexibility for various applications and materials.

• Data Logging Option (ZX-6DL): Easy storage and transfer of measurement data.

• Rugged and Durable: IP67 rated for water and dust resistance.

• Long Battery Life: Ensures extended operation in the field.

• Backed by a 5-Year Warranty: Demonstrates confidence in product quality.

• Made in USA: High-quality manufacturing.

Benefits:

• Saves Time and Money: Eliminates the need for coating removal.

• Ensures Accurate Measurements: Reliable readings for critical assessments.

• Increases Inspection Efficiency: High-speed scanning and user-friendly features.

• Versatile Applications: Suitable for a wide range of materials and industries.

• Durable and Reliable: Built to withstand demanding industrial environments.

• Easy Data Management (ZX-6DL): Streamlines reporting and analysis.

Applications:

• Corrosion and pitting surveys on pipelines, tanks, and vessels.

• Thickness measurement in manufacturing and quality control.

• Inspection of painted structures and components.

• Automotive maintenance and inspection.

• Aerospace material thickness verification.

• General ultrasonic thickness gauging and flaw detection.
