Fujifilm — Industrial X-Ray Film IX100XD

Overview

Fujifilm Industrial X-Ray Film IX100XD is designed for professional non-destructive testing applications requiring dependable image quality and efficient radiographic exposure. It records variations in X-ray or gamma radiation transmitted through an inspected component, allowing technicians to evaluate internal discontinuities, material-density variations, corrosion, and changes in wall thickness.

Compared with slower, finer-grain industrial films, IX100XD is intended to provide a practical balance between radiographic detail, contrast, and exposure speed. This makes it suitable for routine industrial inspections where productivity and reliable image interpretation are important.

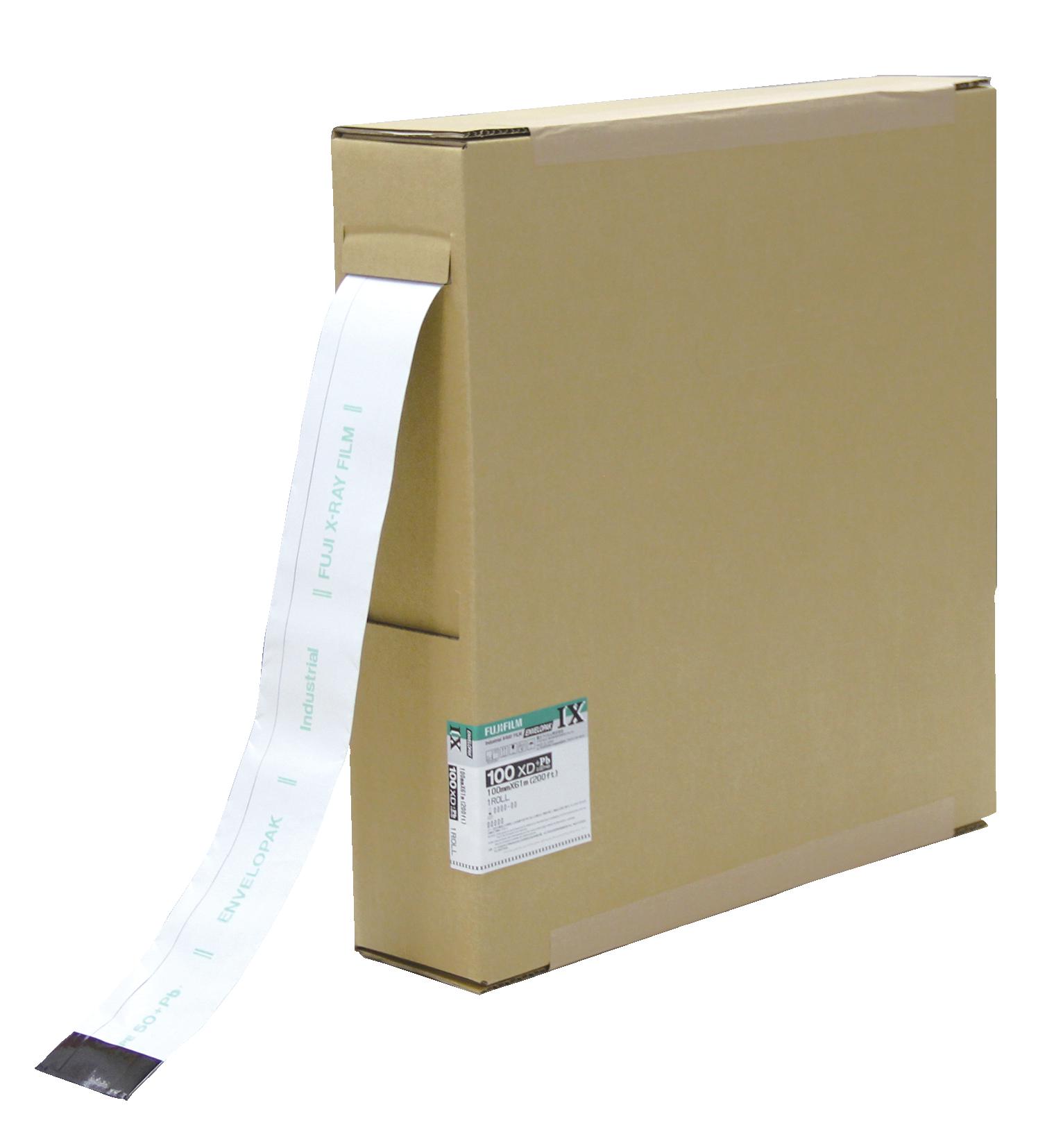

The 100 mm × 61 m LP roll configuration allows technicians to cut film to the required length for different cassettes, welds, pipes, structural components, and exposure arrangements. SKU 16778099 is suitable for field, fabrication, manufacturing, maintenance, and industrial QA/QC radiography programs.

What's Included

Note: Film cassettes, lead intensifying screens, processing chemicals, cutting tools, identification markers, and darkroom accessories are not included unless specified separately.

Box Dimensions & Shipping Weight (Estimated)

Actual shipping dimensions and weight may vary according to the manufacturer’s protective packaging and distributor configuration.

Key Specifications

Performance Features

Fine-Grain Radiographic Imaging
Supports clear industrial radiographs for the evaluation of internal component conditions and discontinuities.

Efficient Exposure Performance
The film’s relatively faster response can help reduce exposure time compared with slower, ultra-fine-grain film types when permitted by the applicable procedure.

High Image Contrast
Provides useful density separation for distinguishing relevant indications, component geometry, and changes in material thickness.

100 mm Film Width
Offers practical imaging coverage for pipeline welds, pressure components, plates, structural joints, and other industrial parts.

61 m Continuous Roll
Allows custom film lengths to be prepared for different component geometries and cassette arrangements.

Permanent Inspection Record
Processed film produces a physical radiographic image that can be interpreted, documented, reviewed, and archived.

User-Friendly Design

• Continuous roll supports custom-length film preparation

• 100 mm width provides practical coverage for many industrial components

• 61 m roll supports multiple radiographic exposures

• Reduces dependence on fixed sheet-film dimensions

• Suitable for compatible flexible and rigid film cassettes

• Can be used with appropriate lead intensifying screens

• Supports manual and automatic processing workflows

• Provides permanent physical inspection documentation

Built for Industrial Environments

• Designed for professional non-destructive testing

• Suitable for fabrication, construction, manufacturing, and maintenance

• Practical for field and laboratory radiography programs

• Supports inspection of welds, castings, forgings, pipes, and structural components

• Roll format accommodates different inspection lengths and geometries

• Suitable for production, asset-integrity, and QA/QC programs

• Must be protected from visible light and unintended radiation exposure

• Intended for use according to approved radiographic and radiation-safety procedures

Film Handling and Processing

• Store unopened film in a cool, dry, radiation-controlled location

• Protect the roll from heat, humidity, pressure, chemical vapors, and unintended exposure

• Open, cut, and load the film only under approved darkroom or safelight conditions

• Handle the film carefully to prevent fingerprints, scratches, creases, and pressure marks

• Cut the required film length using clean tools intended for darkroom use

• Load the film into a compatible cassette or film holder

• Use approved manual or automatic processing chemistry

• Maintain the required development time, temperature, and replenishment

• Wash and dry processed film thoroughly before evaluation

• Store completed radiographs according to applicable record-retention requirements

Compatibility

Compatible with:

• Industrial X-ray inspection systems

• Suitable gamma-ray radiography sources

• Flexible radiographic film cassettes

• Rigid film holders

• Lead intensifying screens

• Radiographic identification markers

• Manual film-processing tanks

• Automatic industrial film processors

• Compatible developer and fixer chemistry

• Radiographic film viewers

• Densitometers

• Pipeline, weld, and component radiography workflows

Radiation source, exposure conditions, screen selection, processing chemistry, and required image quality should be established according to the applicable written procedure.

Ideal Applications

• Pipeline weld inspection

• Circumferential weld radiography

• Structural weld inspection

• Pressure-vessel inspection

• Storage-tank inspection

• Casting evaluation

• Forging inspection

• Boiler and heat-exchanger inspection

• Fabrication QA/QC

• Production radiography

• Maintenance and asset-integrity inspection

• Corrosion and wall-loss evaluation

• Internal discontinuity detection

• General industrial radiography

• Permanent radiographic documentation

Safety and Handling

• Industrial radiography must be performed by trained and authorized personnel

• Establish controlled areas and radiation boundaries before exposure

• Use approved radiation survey meters and personal dosimetry

• Prevent unauthorized personnel from entering the exposure area

• Protect unexposed film from radiation sources and visible light

• Wear suitable protective equipment when handling processing chemicals

• Follow applicable chemical-safety and darkroom procedures

• Dispose of exhausted processing solutions according to applicable requirements

• Store film away from heat, moisture, pressure, and chemical contamination

• Follow all applicable radiation-protection procedures and regulations
