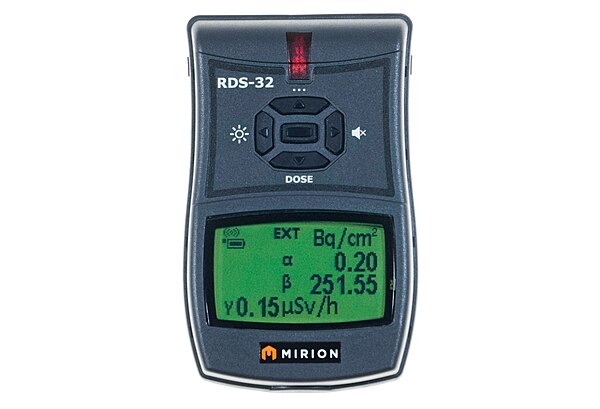

Mirion RDS-32S | Digital Radiation Survey Meter
Advanced Monitoring for Gamma and X-Ray Dose Rates
The RDS-32S is a versatile digital survey meter designed for a wide range of applications including industrial radiography, nuclear power, and first response. It provides highly accurate measurements of both the current dose rate and the cumulative dose, ensuring that personnel remain within safe radiation limits. With its ruggedized housing and intuitive interface, the RDS-32S is engineered for reliable performance in demanding field environments.
Key Performance Features
Dual Measurement Capability: Simultaneously monitors real-time dose rates up to 0.1 Sv/h (10 R/hr) and tracks cumulative dose from 0.1 $\mu$Sv to 10 Sv.
High-Contrast Digital Display: Features a large, backlit LCD screen that is easy to read in direct sunlight or darkened inspection bays. The display includes both digital numerals and a fast-responding bar graph.
Visual, Audible, and Vibrating Alarms: Provides multi-sensory alerts when user-defined thresholds are exceeded, ensuring safety even in high-noise industrial settings.
External Probe Support: Equipped with a connector for external Mirion GMP-series probes (alpha, beta, gamma), allowing the unit to be converted into a contamination monitor or high-range telescope meter.
Data Logging & Connectivity: Internal memory stores measurement data for later analysis or reporting. Data can be exported via USB or wireless connection (model dependent) to Mirion’s configuration software.
Ruggedized Design: Rated IP67 for dust and water resistance, making it suitable for outdoor use in rain or high-humidity environments.
Technical Specifications
| Feature | Specification |
| Detector Type | Energy Compensated GM Tube |
| Dose Rate Range | 0.05 $\mu$Sv/h to 100 mSv/h (0.1 Sv/h) |
| Dose Range | 0.1 $\mu$Sv to 10 Sv |
| Energy Response | 48 keV to 1.3 MeV |
| Accuracy | ±10% (within measurement range) |
| Battery Life | ~600 hours (2 x AA Alkaline) |
| IP Rating | IP67 (Waterproof/Dustproof) |
Physical Dimensions & Logistics
| Measurement | Dimension / Value |
| Unit Dimensions (L x W x H) | 5.7" x 3.6" x 1.4" |
| Box Dimensions (L x W x H) | 9.0" x 6.5" x 3.0" |
| Shipping Weight | 2.0 lbs |
Ideal Applications
Industrial Radiography: Ensuring area safety during the use of Iridium-192 or Cobalt-60 sources.
Nuclear Facilities: Routine health physics surveys and dose monitoring for plant personnel.
Defense & First Response: Rapid detection of radiation levels in emergency scenarios.
Border Security: Scanning for unauthorized radioactive materials or orphan sources.
Calibration Notice: To maintain regulatory compliance and instrument accuracy, the RDS-32S should be calibrated annually at a certified radiation laboratory.
SKU: MG-1233-321
